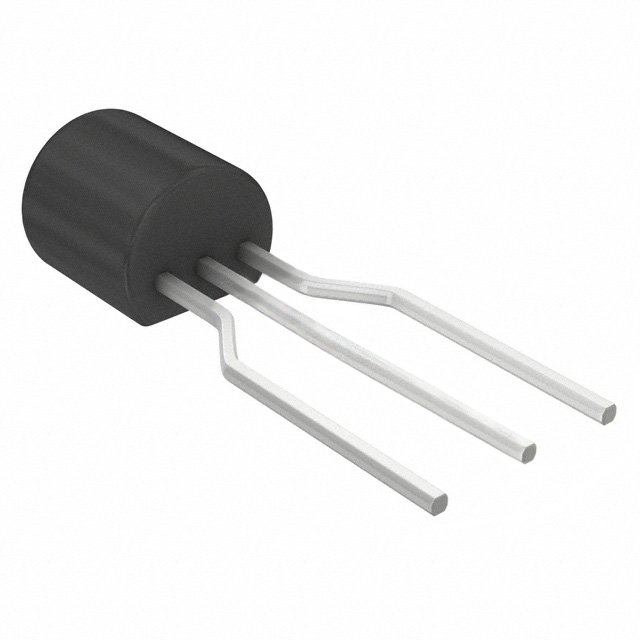

2SA844-E-AP
Or copy the link below:
- Mfr.Part #
- 2SA844-E-AP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Datasheet
- Download
- Description
- TRANS PNP 55V 0.1A TO92
- Stock
- 12,085
- In Stock ：
- 12,085
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Frequency - Transition :
- 200MHz
- Operating Temperature :
- 150°C TJ
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reach Compliance Code :
- Compliant
- Package / Case :
- TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Packaging :
- Tape and Box (TB)
- RoHS Status :
- RoHS Compliant
- Peak Reflow Temperature (Cel) :
- 260
- Transistor Type :
- PNP
- Mounting Type :
- Through Hole
- Power - Max :
- 300mW
- Current - Collector (Ic) (Max) :
- 100mA
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 400 @ 2mA 12V
- Voltage - Collector Emitter Breakdown (Max) :
- 55V
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Vce Saturation (Max) @ Ib, Ic :
- 500mV @ 1mA, 10mA
- Datasheets
- 2SA844-E-AP
PNP 150°C TJ 100nA ICBO TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) Tape & Box (TB) Through Hole
2SA844-E-AP Overview
DC current gain in this device equals 400 @ 2mA 12V, which is the ratio of the base current to the collector current.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 500mV @ 1mA, 10mA.A negative maximal voltage - Collector Emitter Breakdown can be observed in the device.
2SA844-E-AP Features
the DC current gain for this device is 400 @ 2mA 12V
the vce saturation(Max) is 500mV @ 1mA, 10mA
2SA844-E-AP Applications
There are a lot of Micro Commercial Co
2SA844-E-AP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
