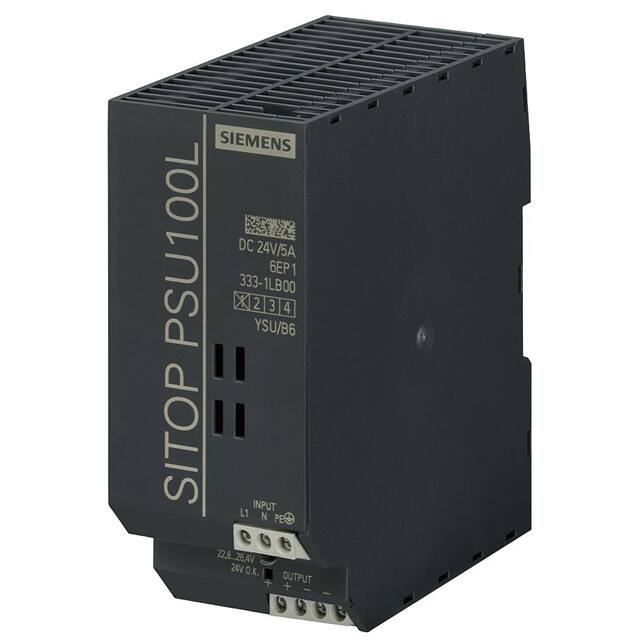

6EP13331LB00

Manufacturer :

Siemens

Product Category :

Voltage - Output 5 :

-

Content :

1pc(s)

Voltage - Output 2 :

-

Efficiency :

86%

Suitable for safety functions :

No

Package :

Bulk

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Min. temperature :

0°C

Input voltage (max.) :

264V AC

Features :

Adjustable Output, IP20, Universal Input

Current - Output (Max) :

5A

Size / Dimension :

4.72 L x 1.97 W x 4.92 H (120.0mm x 50.0mm x 125.0mm)

Output Voltage :

24V dc

Power (Watts) :

120W

Load Regulation :

0.5%

Voltage type of supply voltage :

AC

Manufacturer part # :

6EP1333-1LB00

Input Voltage :

93 → 132 V ac / 187 → 264V ac

Output Current :

5A

No. of outputs :

1x

Output current (details) :

5A

Voltage - Output 6 :

-

Series :

SITOP PSU100L

Depth :

125mm

Number of Outputs :

1

Rail mounting possible :

yes

Operating Temperature :

0°C ~ 60°C (With Derating)

Type :

SITOP PSU100L 24 V/5 A

Connection :

Screw Terminal

Modular version :

yes

Width :

50mm

Power :

120W

Dim :

(W x H x D) 50 x 125 x 125 mm

Output voltage (max.) :

26.4V DC

Output voltage (min.) :

22.8V DC

Output voltage (nominal) :

24V dc

Degree of protection (IP) :

IP20

Max. temperature :

+60°C

Voltage - Output 3 :

-

Height :

125mm

Connections :

Screw Terminals

Voltage - Output 1 :

24V

Weight :

0.5kg

Input Type :

AC

Type of electric connection :

Screw connection

Minimum Load Required :

-

Approval Agency :

CB, CE, CSA, cUL, cULus, UL

Min. input voltage :

93V AC

Output current (max.) - rounded :

5A

Voltage - Output 4 :

-

Mounting Type :

DIN Rail Mount

Standard Number :

60950-1; UL 508

Power Rating :

120W

Product Status :

Active

Max. output current :

5A
