6EP19312EC21

Manufacturer :

Siemens

Product Category :

Output effective power :

360

Input Type :

DC

Applications :

Industrial

Voltage - Output 5 :

-

Input voltage (max.) :

29V DC

Size / Dimension :

4.92 L x 1.97 W x 4.92 H (125.0mm x 50.0mm x 125.0mm)

Type :

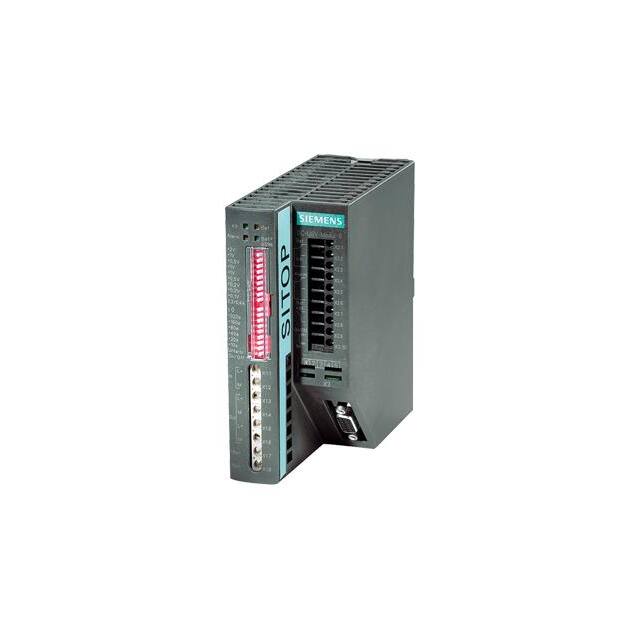

SITOP DC-USV-MODUL 15A DC 24V

Connections :

Screw connector

Approval Agency :

CE, CSA, cULus, UL

of which battery-buffered :

2

Number of Outputs :

1

Output voltage (max.) :

24V dc

Voltage - Output 3 :

-

Series :

6EP1

Suitable for network-management :

No

Efficiency :

96.2%

Voltage - Output 2 :

-

Operating Temperature :

-25°C ~ 60°C

Features :

Adjustable Output, IP20

Height :

125mm

Output current (details) :

0 - 15A

Voltage - Output 6 :

-

Power (Watts) :

360W

Depth :

125mm

Min. input voltage :

22V DC

Minimum Load Required :

-

Product Status :

Active

Voltage - Output 4 :

-

Current - Output (Max) :

15A

Dim :

(W x H x D) 50 x 125 x 125 mm

Width :

50mm

Package :

Bulk

Weight :

0.4kg

Voltage type :

DC

Interfaces :

NONE

SNMP :

No

Bridging time, max load :

45s

USV- technology :

Offline

Voltage - Output 1 :

24V

Standard Number :

508

Output Voltage :

24VDC
