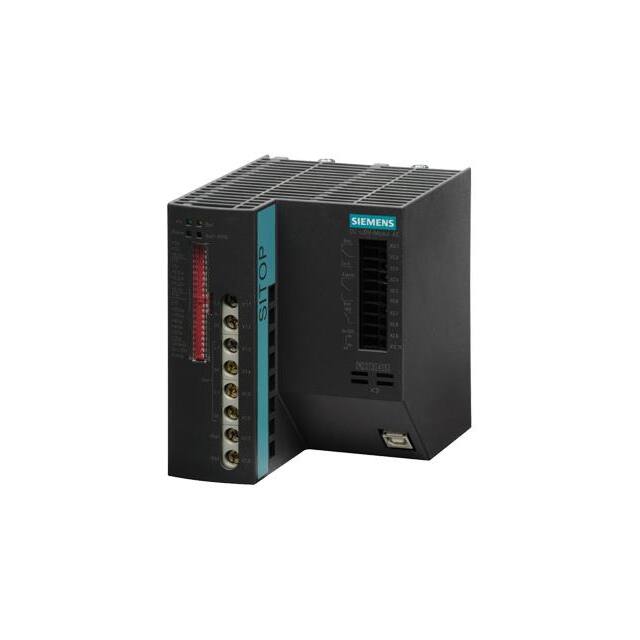

6EP19312FC42

Manufacturer :

Siemens

Product Category :

Min Operating Temperature :

0 °C

Current Rating :

42.6 A

Standard Number :

60950-1; UL 508

Current - Output (Max) :

40A

Output Current :

40 A

Minimum Load Required :

-

Number of Outputs :

1

Size / Dimension :

4.92 L x 4.02 W x 4.92 H (125.0mm x 102.0mm x 125.0mm)

Package :

Box

REACH SVHC :

Unknown

Length :

125 mm

Input Current :

1.1 A

Mount :

DIN Rail

Power Rating :

960 W

Applications :

Industrial, ITE (Commercial)

Product Status :

Active

Suitable for network-management :

No

Max Input Voltage :

27 V

Output Voltage :

24 V

Input Type :

DC

Depth :

125

Nominal Input Voltage :

24 V

Operating Temperature :

-25°C ~ 60°C

Width :

102

Voltage - Output 4 :

-

USV- technology :

Offline

Voltage - Output 3 :

-

Voltage - Output 5 :

-

Operating Supply Voltage :

24 V

Weight :

1.1

Power (Watts) :

-

Ratings :

IP20

Efficiency :

97 %

Height :

125

Max Operating Temperature :

60 °C

Voltage - Output 2 :

-

SNMP :

No

Features :

Adjustable Output, IP20

Voltage type :

DC

Voltage - Output 6 :

-

Voltage - Output 1 :

24V

Output effective power :

960

RoHS :

Compliant

Approval Agency :

CE, cULus, EAC, UL

Series :

6EP1
