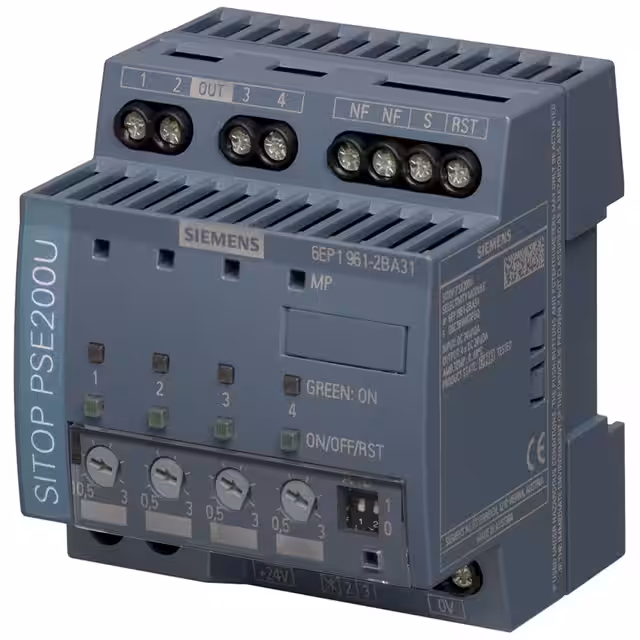

6EP19612BA31

Manufacturer :

Siemens

Product Category :

Rated control supply voltage at DC :

22 - 30

Width :

72mm

Number of contacts as change-over contact :

0

Input Voltage :

24V dc

Length :

72mm

Voltage - Output 2 :

24V

Max Input Voltage :

24 V

Type :

SITOP PSE200U 3 A

Applications :

Industrial, ITE (Commercial)

Min Output Voltage :

24 V

Voltage - Output 3 :

24V

Number of contacts as normally closed contact :

0

Max Output Voltage :

24 V

Max Operating Temperature :

60 °C

Min Operating Temperature :

0 °C

Type of electric connection :

Screw connection

Product Status :

Active

Output Voltage :

24V dc

Number of Outputs :

4

Voltage type for actuating :

DC

Power (Watts) :

-

Input Type :

DC

Dim :

(L x W) 72 mm x 72 mm

Minimum Load Required :

-

Weight :

200g

RoHS :

Compliant

Mounting Type :

DIN Rail

Voltage - Output 1 :

24V

Number of contacts as normally open contact :

0

Operating Temperature :

-25°C ~ 60°C

Size / Dimension :

2.83 L x 2.83 W x 3.15 H (72.0mm x 72.0mm x 80.0mm)

Voltage - Output 4 :

24V

Current - Output (Max) :

3A, 3A, 3A, 3A

Min Input Voltage :

24 V

Height :

80 mm

Depth :

72 mm

Efficiency :

99 %

Standard Number :

60950-1; UL 508

Approval Agency :

CE, cULus, EAC, UL

Input Current :

40 A

Features :

Adjustable Output, IP20

Voltage - Output 5 :

-

Power Rating :

9W

Series :

SITOP PSE200U

Standards Met :

CE Marked, CSA C22.2 No. 107.1, cULus Listed, EMC Certified, EN 55022 Class B, EN 61000-6-2, File E197259, RoHS Compliant, UL, UL 508

Voltage - Output 6 :

-

Output Current :

3 A

With detachable clamps :

No
