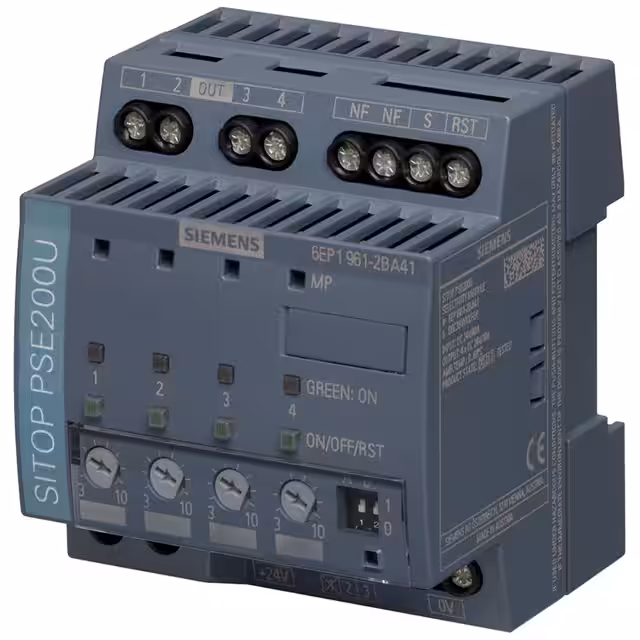

6EP19612BA41

Manufacturer :

Siemens

Product Category :

Min Operating Temperature :

0 °C

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Depth :

72 mm

Standard Number :

60950-1; UL 508

Voltage - Output 6 :

-

Width :

72 mm

Voltage - Output 4 :

-

With detachable clamps :

No

Output Voltage :

24 V

Series :

SITOP PSE200U

Mounting Type :

DIN Rail Mount

Length :

72 mm

Voltage type for actuating :

DC

Type :

Selectivity Module

Power (Watts) :

-

Number of contacts as change-over contact :

0

Input Type :

DC

Size / Dimension :

4.76 L x 2.76 W x 4.92 H (121.0mm x 70.0mm x 125.0mm)

Number of contacts as normally open contact :

0

Weight :

200 g

Package :

Bulk

Operating Temperature :

-25°C ~ 60°C

Voltage - Output 1 :

24V

Current Rating :

10A

Type of electric connection :

Screw connection

Input Current :

40 A

Max Operating Temperature :

60 °C

Number of Outputs :

4

Rated control supply voltage at DC :

22 - 30

Output Current :

10 A

Features :

Adjustable Output, IP20

Height :

80 mm

Minimum Load Required :

-

Approval Agency :

cCSAus, CE, CSA, cUL, cULus, UL

Input Voltage :

22 → 30V dc

Voltage - Output 5 :

-

Current - Output (Max) :

10A

RoHS :

Compliant

Number of contacts as normally closed contact :

0

Product Status :

Active

Efficiency :

97 %

Standards Met :

CE, CSA Certified, UL

Voltage - Output 2 :

-

Voltage - Output 3 :

-
