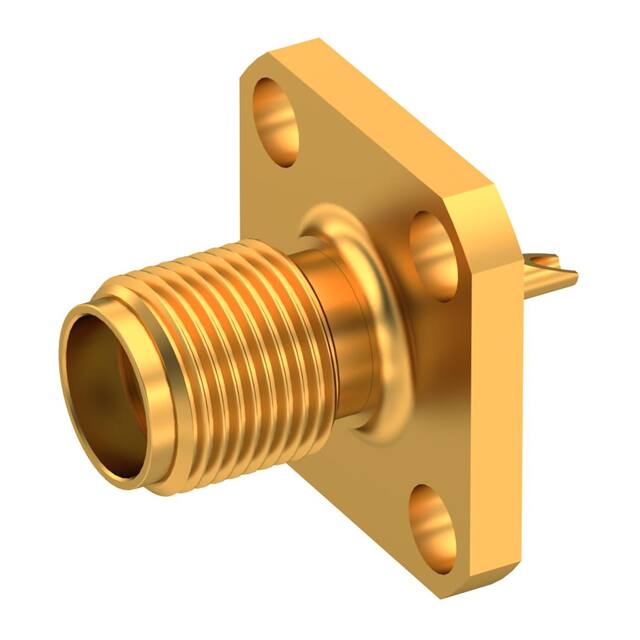

9408-1113-000
Or copy the link below:
- Mfr.Part #
- 9408-1113-000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / STRAIGHT JACK FEMALE GOLD
- Stock
- 25,147
- In Stock ：
- 25,147
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Type :
- SMA
- Operating Temperature :
- -65 to 165 °C
- Body/Shell Style :
- JACK
- Product Category :
- RF Connectors / Coaxial Connectors
- Product Length :
- 14.73 mm
- Factory Lead Time :
- 7 Weeks, 6 Days
- Brand :
- Radiall
- Body Orientation :
- Straight
- Operating Frequency-Max :
- 18 GHz
- Contact Termination :
- Solder Cup
- IEC Conformance :
- No
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Contact Gender :
- FEMALE
- Connector Type :
- Jack, Female Socket
- DIN Conformance :
- No
- Features :
- -
- Shield Termination :
- Solder
- Subcategory :
- RF Interconnects
- Ingress Protection :
- -
- Termination Type :
- Solder
- Product Type :
- RF Connectors / Coaxial Connectors
- Filter Feature :
- No
- Shell Material :
- Stainless Steel
- Frequency - Max :
- 18 GHz
- Impedance :
- 50 OHM
- MIL Conformance :
- No
- Gender :
- Receptacle
- Body Finish :
- Gold
- Manufacturer :
- Radiall
- Package :
- Bulk
- Reliability :
- COMMERCIAL
- Housing Color :
- Gold
- Contact Style :
- COAX
- Characteristic Impedance :
- 50 Ω
- Body Material :
- Stainless Steel
- Option :
- GENERAL PURPOSE
- RF Series :
- SMA
- Termination Method :
- Solder
- Mounting Feature :
- Flange
- Panel Mount :
- yes
- Orientation :
- Straight
- Shell Finish :
- Gold Over Nickel
- Product :
- Connectors
- Product Status :
- Active
- Terminate To :
- Coaxial Cable
- JESD-609 Code :
- e4
- Insulator Color :
- White
- Mounting :
- Panel Mount
- Contact Finish Termination :
- Gold (Au) - with Nickel (Ni) barrier
- Connector Style :
- SMA
- Mounting Option 1 :
- LOCKING
- Includes :
- -
- Total Number of Contacts :
- 1
- Reach Compliance Code :
- Compliant
- Series :
- -
- Coupling Type :
- Threaded
- Cable Group :
- -
- Mounting Type :
- Panel Mount
- Mounting Style :
- Flange Mount
- Insertion Loss :
- -
- Number of Ports :
- 1
- Base Product Number :
- 9408-1113
- Packaging :
- Bulk
- Center Contact Plating :
- Gold
- Fastening Type :
- Threaded
- Contact Plating :
- Gold
- Termination Style :
- Solder
- Mating Information :
- No
- Mating Cycles :
- 500
- Body Style :
- Straight
- Contact Material :
- BERYLLIUM COPPER
- Center Contact Material :
- BERYLLIUM COPPER
- Datasheets
- 9408-1113-000
