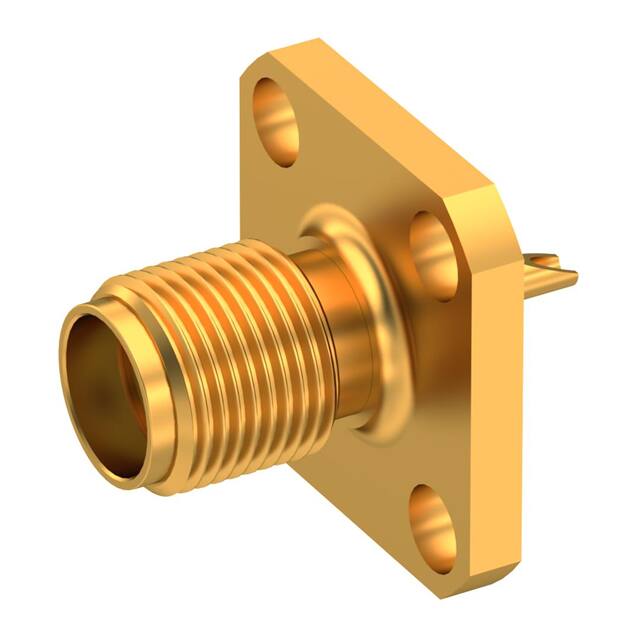

9408-1113-002

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Style :

Flange Mount

Cable Group :

-

Subcategory :

RF Interconnects

Orientation :

Straight

Operating Temperature :

-65°C ~ 165°C

Connector Type :

Jack, Female Socket

Reach Compliance Code :

Compliant

Product Status :

Active

Termination Type :

Solder

Cable Type :

-

Characteristic Impedance :

50 Ω

Filter Feature :

No

Connector Style :

SMA

Includes :

-

Series :

-

Features :

-

Shield Termination :

Solder

Contact Finish Termination :

Gold

Body Finish :

Gold

Termination Style :

Solder Cup

Body Material :

Stainless Steel

IEC Conformance :

No

Impedance :

50 Ohms

Frequency - Max :

18 GHz

Fastening Type :

Threaded

Gender :

Jack (Socket)

DIN Conformance :

No

Product Type :

RF Connectors / Coaxial Connectors

Option :

GENERAL PURPOSE

Operating Frequency-Max :

18 GHz

RF Series :

SMA

IP Rating :

-

Mounting Feature :

Flange

JESD-609 Code :

e4

Mating Cycles :

500

Coupling Type :

Threaded

Mounting Type :

Panel Mount

Base Product Number :

9408-1113

Contact Gender :

FEMALE

Panel Mount :

yes

MIL Conformance :

No

Product :

Panel Receptacles

Ingress Protection :

-

Manufacturer :

Radiall

Center Contact Plating :

Gold

Housing Color :

Gold

Polarity :

Standard

Number of Ports :

1

Insertion Loss :

-

Contact Termination :

Solder Cup

Product Category :

RF Connectors / Coaxial Connectors

Center Contact Material :

BERYLLIUM COPPER

Additional Feature :

CAPTIVE CONTACT

Body/Shell Style :

Receptacle

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Package :

Bulk

Factory Lead Time :

6 Weeks, 1 Day

Brand :

Radiall
