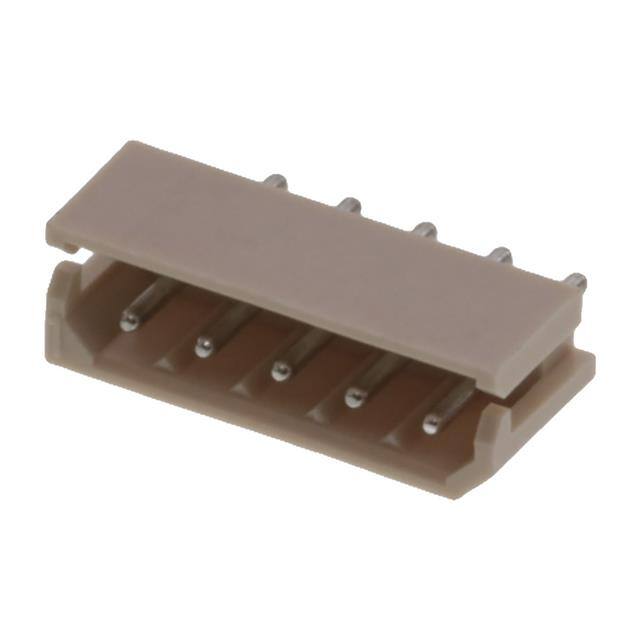

99-99-0991

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Contacts :

7(POS)

Row Spacing :

-

Product Length (mm) :

19.9(mm)

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 40 C

Application :

Signal

Accessory Type :

-

RoHS :

Details

Product Status :

Active

Flammability Rating :

UL 94 V-0

Contact Plating :

TIN OVER COPPER

Contact Material :

Brass

Flammability :

94V-0

Gender :

HDR

Mating Post Length :

3.5 mm

Housing Material :

Nylon 6/6

Product Type :

Headers and Wire Housings

Type :

Shrouded Header

Tradename :

Mini-SPOX

Current Rating :

3 A

Termination Method :

Solder

Pitch (mm) :

2.5(mm)

Termination Style :

Solder Pin

Product :

Headers

Operating Temp Range :

-40C to 105C

Product Category :

Headers and Wire Housings

Voltage Rating :

250 V

Packaging :

Bag-packed

Contact Resistance Max :

20(mohm)

Brand :

Molex

Manufacturer :

Molex

Contact Type :

-

Mounting Angle :

Straight

Subcategory :

Headers and Wire Housings

Housing Color :

Natural

Maximum Operating Temperature :

+ 105 C

Pitch :

2.5 mm

Number of Contact Rows :

1

Current Rating (Max) :

3/Contact(A)

RoHS Status :

RoHS Compliant

Number of Positions :

7 Position

Orientation :

Vertical

Contact Gender :

Pin (Male)

Series :

5267

Product Height (mm) :

5.9(mm)

Body Orientation :

Straight

Number of Rows :

1 Row

Voltage Rating Max :

250V

Termination Post Length :

3.5 mm

Product Depth (mm) :

4.9(mm)
