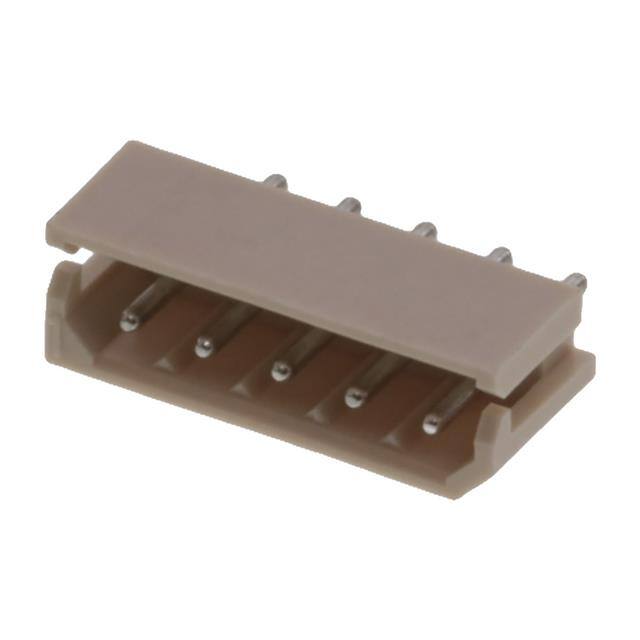

99-99-0998

Manufacturer :

Molex

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

Plating :

Tin

DIN Conformance :

No

Flammability Rating :

UL 94 V-0

Maximum Operating Temperature :

+ 105 C

Pitch (mm) :

2.5(mm)

Length :

37.4 mm

Termination Style :

Solder Pin

Filter Feature :

No

Mounting Type :

BOARD

Polarization Key :

POLARIZED HOUSING

Mating Contact Pitch :

0.098 inch

Current Rating :

3 A

Number Of PCB Rows :

1

Accessory Type :

-

Package :

Box

Lifecycle Status :

Production (Last Updated: 2 years ago)

Mounting Style :

Through Hole

Reference Standard :

UL

Application :

Signal

Connector Type :

Male Pin

UL Flammability Code :

94V-0

Total Number of Contacts :

14

Durability :

30 Cycles

Reach Compliance Code :

Compliant

Contact Plating :

TIN OVER COPPER

Product Depth (mm) :

4.9(mm)

Contact Pattern :

RECTANGULAR

RoHS :

Details

Dielectric Withstanding Voltage :

1400VAC V

Mixed Contacts :

No

Rated Current (Signal) :

3 A

Number of Rows :

1 Row

Contact Finish Termination :

TIN OVER COPPER

Contact Resistance Max :

20(mohm)

Pitch :

2.5 mm

Body Breadth :

0.193 inch

Product Status :

Active

Gender :

HDR

Termination Post Length :

3.5 mm

Body/Shell Style :

Receptacle

Mounting Option 1 :

LOCKING

Brand :

Molex

Ambient Temperature Range High :

105 °C

Product Height (mm) :

5.9(mm)

Current Rating (Max) :

3/Contact(A)

Max Voltage Rating (AC) :

250 V

Product Length (mm) :

37.4(mm)

Additional Feature :

SPOX, POLARIZED, SHROUDED

Manufacturer :

Molex

Terminal Length :

0.138 inch

Mating Post Length :

3.5 mm

Number of Contacts :

14(POS)

Body Orientation :

Straight

Row Spacing :

-

Number of Positions :

14 Position

Housing Material :

Nylon 6/6

Max Operating Temperature :

105 °C

Mounting Angle :

Straight

Minimum Operating Temperature :

- 40 C

Contact Type :

-

Contact Style :

RND PIN-SKT

Insulation Resistance :

1000000000 Ω

Contact Resistance :

20 mΩ

Contact Mating Length :

3.5052 mm

Termination Type :

Solder

ECCN Code :

EAR99

Voltage Rating Max :

250VDC/250VAC

Subcategory :

Headers and Wire Housings

Type :

Shrouded Header

Flammability :

94V-0

Termination :

Solder

Terminal Pitch :

2.5 mm

Min Operating Temperature :

-55 °C

Number of Contact Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Housing Color :

Natural

Option :

GENERAL PURPOSE

Contact Gender :

Pin (Male)

HTS Code :

8536.69.40.40

Depth :

4.9 mm

Product :

Headers

Number of Circuits :

14

Series :

5267

Contact Material :

Brass

Orientation :

Vertical

Packaging :

Bag

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mount :

Through Hole

Country of Origin :

TH

Termination Method :

Solder

Color :

Natural

Tradename :

Mini-SPOX

Product Type :

Headers and Wire Housings

Pbfree Code :

yes

Voltage Rating :

250 V

MIL Conformance :

No

Body Depth :

0.232 inch

Operating Temp Range :

-40C to 105C

Reliability :

COMMERCIAL

Product Category :

Headers and Wire Housings

Height :

6.1 mm
