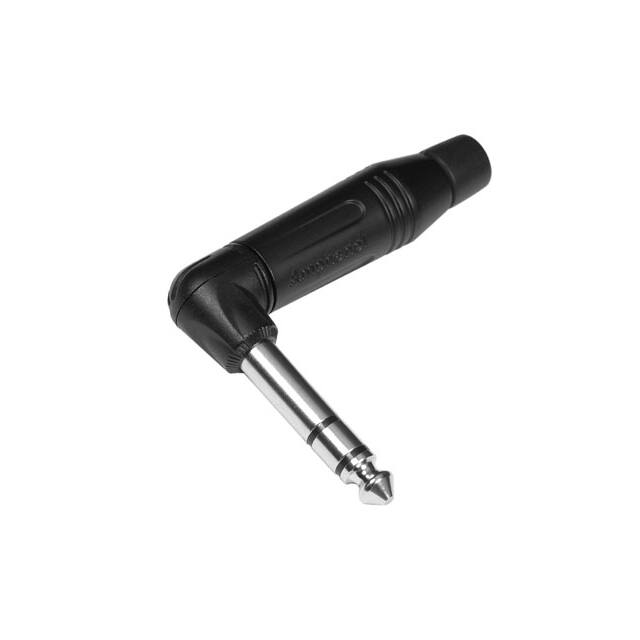

ACPS-RB BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Audio Connectors

Standard :

1/4 in

Product Status :

Active

Mounting Type :

Free Hanging (In-Line), Right Angle

Internal Switch(s) :

Does Not Contain Switch

Body/Shell Style :

PLUG

Product Type :

Phone Connectors

Housing Material :

Zinc Die Cast

DIN Conformance :

No

Shielding :

Unshielded

Package :

Box

Mating Length/Depth :

1.205 (30.61mm)

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Connector Type :

Phone Plug

Contact Material :

Brass

Number of Positions :

3 Position

MIL Conformance :

No

Actual Diameter :

0.249 (6.32mm)

Number of Positions/Contacts :

3 Conductors, 3 Contacts

Cable Opening :

0.118 ~ 0.256 (3.00mm ~ 6.50mm)

Termination Style :

Solder

Current Rating (Amps) :

10 A

Contact Plating :

Nickel

Operating Temperature :

-25°C ~ 70°C

Voltage - Rated :

-

Includes :

-

Insulation Color :

-

Contact Material - Plating :

Nickel

Accessory Type :

-

IEC Conformance :

No

Features :

-

Termination :

Solder Eyelet(s)

Body Color :

Silver, Black

Configuration :

1X1 HORIZONTAL

Panel Hole Size :

-

Additional Feature :

94V-0

Gender :

Male

Switch Configuration :

Not Switched

Brand :

Amphenol Audio

Body Material :

-

Voltage Rating :

25 V

Number of Ports :

1

Base Product Number :

ACPS

Thread Size :

-

Option :

GENERAL PURPOSE

Signal Lines :

Stereo (3 Conductor, TRS)

Orientation :

RIGHT ANGLE

Mating Cycles :

1000 Cycle

Product Category :

Phone Connectors

RoHS :

Details

Series :

M

Subcategory :

Audio and Video Connectors

Mounting Style :

CABLE

Reach Compliance Code :

Unknown

Manufacturer :

Amphenol
