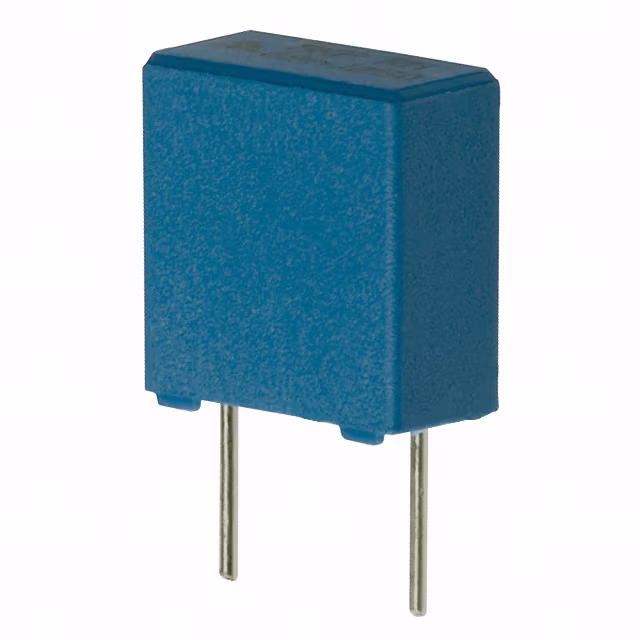

B32520C0105J289

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Termination :

Radial

Dielectric Material :

Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Height :

10.5mm

ECCN Code :

EAR99

Tolerance :

5%

Width :

5mm

Packing Method :

Ammo Pack

Capacitance :

1μF

Packaging :

Tape and Box (TB)

Additional Feature :

RATED AC VOLTAGE (V): 40

Operating Temperature :

-55°C ~ 125°C

Height - Seated (Max) :

0.413 (10.50mm)

Dielectric :

PET

Moisture Sensitivity Level (MSL) :

--

RoHS Status :

RoHS Compliant

Voltage - Rated DC :

63V

Package / Case :

Radial

Terminal Finish :

MATTE TIN

JESD-609 Code :

e3

Min Operating Temperature :

-55°C

Length :

10mm

Series :

B32520

Features :

--

Voltage Rating - DC :

63V

Capacitor Type :

FILM CAPACITOR

Voltage Rating - AC :

40V

Ratings :

--

Applications :

Automotive; EMI, RFI Suppression

Lead Pitch :

7.5mm

Terminal Shape :

Wire

Max Operating Temperature :

125°C

Voltage - Rated AC :

40V

Lead Spacing :

0.295 (7.50mm)

Pbfree Code :

yes

Mounting Feature :

THROUGH HOLE MOUNT

Size / Dimension :

0.394 L x 0.197 W (10.00mm x 5.00mm)

HTS Code :

8532.24.0060

Mounting Type :

Through Hole
