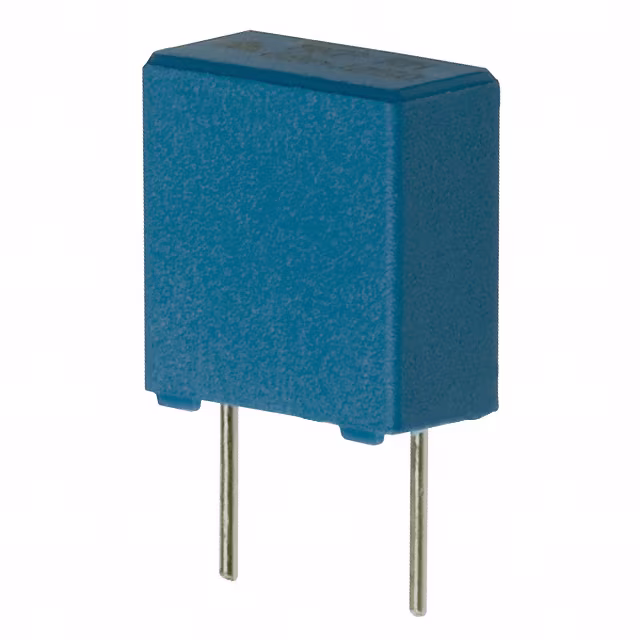

B32520C0105M189
Or copy the link below:
- Mfr.Part #
- B32520C0105M189
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 1UF 20% 63VDC RADIAL
- Stock
- 43,220
- In Stock ：
- 43,220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Applications :
- Automotive; EMI, RFI Suppression
- Height Seated (Max) :
- 0.413 10.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 15 Weeks
- Terminal Finish :
- Matte Tin (Sn)
- JESD-609 Code :
- e3
- Surface Mount :
- No
- Operating Temperature :
- -55°C~125°C
- Rated (DC) Voltage (URdc) :
- 63V
- Terminal Pitch :
- 7.5mm
- Terminal Shape :
- Wire
- Lead Spacing :
- 0.295 7.50mm
- Custom Capabilities :
- Special Lead Length Available On Request
- Voltage - Rated DC :
- 63V
- Voltage - Rated AC :
- 40V
- Number of Terminations :
- 2
- Rated (AC) Voltage (URac) :
- 40V
- Dielectric Material :
- Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
- Packing Method :
- TR
- Series :
- B32520
- HTS Code :
- 8532.25.00.70
- Length :
- 10mm
- Capacitor Type :
- FILM CAPACITOR
- Termination :
- PC Pins
- Tolerance :
- ±20%
- Pbfree Code :
- yes
- Package / Case :
- Radial
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Capacitance :
- 1μF
- Width :
- 5mm
- Size / Dimension :
- 0.394Lx0.197W 10.00mmx5.00mm
- Reference Standard :
- AEC-Q200
- Packaging :
- Tape and Reel (TR)
- ECCN Code :
- EAR99
- Datasheets
- B32520C0105M189
B32520 1μF Film Capacitor ±20% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
B32520C0105M189 Overview
For systems to operate, a rated (DC) voltage (URdc) of 63V must be applied internally.Lead spacing is 0.295 7.50mm for this electrical device.In order to power systems, you must have a rated (AC) voltage of 40V (URac).Devices with a -55°C~125°C temperature capability can be operated.
B32520C0105M189 Features
a rated (DC) voltage (URdc) of 63V
an internal rated (AC) voltage (URac) of 40V
B32520C0105M189 Applications
There are a lot of TDK Electronics Inc.
B32520C0105M189 applications of film capacitors.
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
