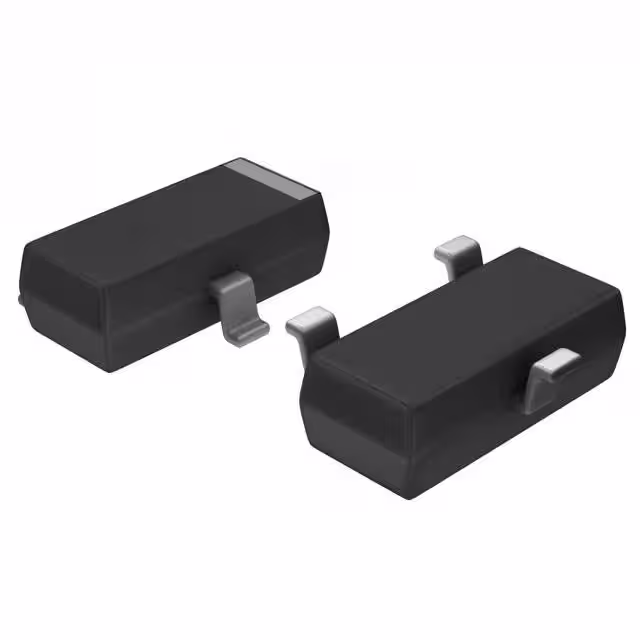

BSS126IXTSA1

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

Input Capacitance (Ciss) (Max) @ Vds :

21 pF @ 25 V

Pin Count :

3

Vgs (Max) :

±20V

Minimum Operating Temperature :

- 55 C

Subcategory :

MOSFETs

Number of Elements per Chip :

1

Continuous Drain Current Id :

21mA

Manufacturer :

Infineon

Supplier Device Package :

PG-SOT23-3-5

FET Feature :

-

Series :

SIPMOS?

FET Type :

N-Channel

Product Type :

MOSFET

Vgs(th) (Max) @ Id :

1.6V @ 8μA

Rise Time :

9.7 ns

Channel Mode :

Depletion

Number of Channels :

1 Channel

Operating Temperature :

-55°C ~ 150°C (TJ)

Power Dissipation :

500mW

Product Category :

MOSFET

Gate Charge (Qg) (Max) @ Vgs :

1.4 nC @ 5 V

Rds On (Max) @ Id, Vgs :

500Ohm @ 16mA, 10V

Package :

Digi-Reel?

Maximum Operating Temperature :

+ 150 C

Package / Case :

TO-236-3, SC-59, SOT-23-3

MSL :

MSL 1 - Unlimited

Mounting Style :

SMD/SMT

Channel Type :

N

Transistor Type :

1 N - Channel

Packaging :

Cut Tape

Brand :

Infineon Technologies

Current - Continuous Drain (Id) @ 25°C :

21mA (Ta)

Configuration :

Single

Mounting Type :

Surface Mount

Package Type :

SOT-23

Drain to Source Voltage (Vdss) :

600 V

Qualification :

-

Base Product Number :

BSS126

Power Dissipation (Max) :

500mW (Ta)

Transistor Polarity :

N-Channel

Product Status :

Active
