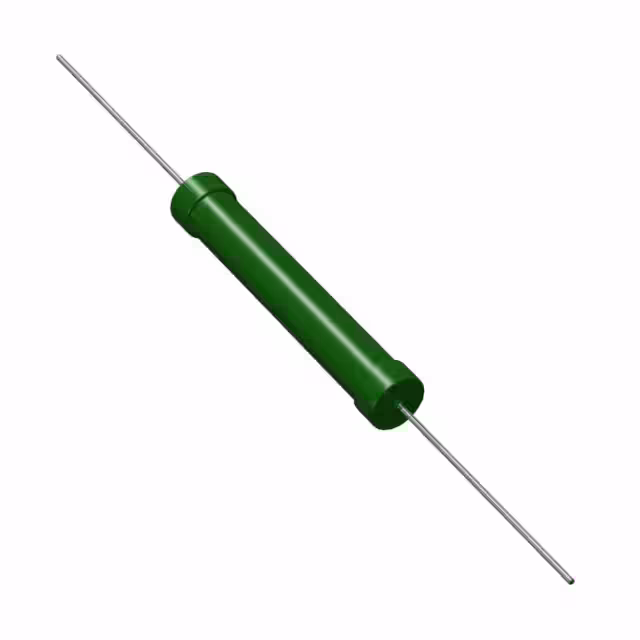

C10100RJL

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product :

Power Resistors Wirewound Vitreous Enamel

Features :

--

Size / Dimension :

0.335 Dia x 1.500 L (8.50mm x 38.10mm)

Package Length :

38.1 mm

Height :

-

Subcategory :

Resistors

Power (Watts) :

10W

Manufacturer :

TE Connectivity

Number of Terminals :

2

Type :

FIXED RESISTOR

Mounting Style :

PCB Mount

Width :

-

Product Status :

Active

Lead Length :

35 mm

HTS Code :

8533.21.00.80

Power Rating :

10.0000 W

Lead Diameter :

0.8 mm

Maximum Operating Temperature :

+ 350 C

Pbfree Code :

yes

Rated Power Dissipation (P) :

10 W

Voltage Rating :

500 V

Terminal Shape :

Wire

Resistor Type :

FIXED RESISTOR

Operating Temperature :

-55°C ~ 200°C

Diameter :

8.5 mm

RoHS :

Details

Tolerance :

±5%

Supplier Device Package :

Axial

Reach Compliance Code :

Compliant

Mounting Feature :

THROUGH HOLE MOUNT

Construction :

All-Welded

ECCN Code :

EAR99

Product Length :

38.1 mm

Brand :

TE Connectivity / Holsworthy

Series :

C, CGS

Packing Method :

Tray

Number of Terminations :

2

Factory Lead Time :

17 Weeks, 6 Days

Failure Rate :

--

Package Shape :

TUBULAR PACKAGE

Length :

38.1 mm

Temperature Coefficient :

90.0000 ppm/°C

Technology :

Wire Wound

Product Category :

Wirewound Resistors - Through Hole

Height - Seated (Max) :

--

Surface Mount :

No

Termination Style :

Axial

Minimum Operating Temperature :

- 55 C

Packaging :

Tray

Product Type :

Wirewound Resistors

Resistance Tolerance :

5

Package :

Tray

Package / Case :

Axial

Resistance :

100

Composition :

Wirewound
