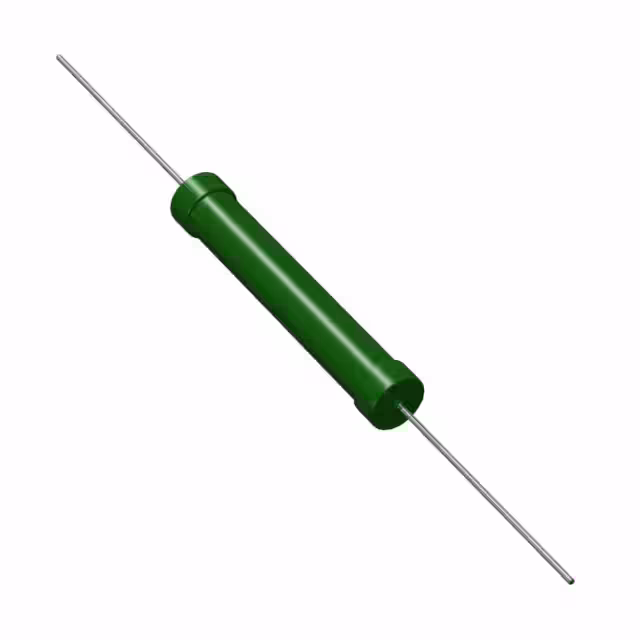

C1010KJL

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product Type :

Wirewound Resistors

Base Product Number :

C10

Technology :

Wire Wound

Package :

Bulk

Type :

Wirewound

Package / Case :

Axial

Minimum Operating Temperature :

- 55 C

Number of Terminations :

2

Brand :

TE Connectivity / Holsworthy

Manufacturer :

TE Connectivity

Note :

n/a

Construction :

Cylindrical

Features :

--

Voltage Rating :

500V

Number of Terminals :

2

Packaging :

LOOSE/TRAY

Subcategory :

Resistors

Product Status :

Active

Product Diameter (mm) :

8.5(mm)

Height :

-

Resistance Tolerance :

± 5%

Composition :

Wirewound

ECCN Code :

EAR99

Maximum Operating Temperature :

+ 350 C

Product Height (mm) :

Not Required(mm)

Termination Style :

Axial

Tolerance (+ or -) :

5%

Resistor Type :

High Power

Product Length :

38.1mm

Mounting Style :

PCB Mount

Operating Temperature :

-55°C ~ 200°C

Power (Watts) :

10W

Military Standard :

Not Required

Size / Dimension :

0.335 Dia x 1.500 L (8.50mm x 38.10mm)

Series :

MCS MIDIá

Product Width :

-

Power Rating(s) :

10(W)

Reach Compliance Code :

Compliant

Lead Spacing (nom) :

Not Required(mm)

Product Depth (mm) :

Not Required(mm)

Temperature Range @ Derated Power :

40 TO 350

Height - Seated (Max) :

--

Diameter :

8.5 mm

Supplier Device Package :

Axial

Qualification :

-

Pitch :

5 mm

Tolerance :

±5%

Product Length (mm) :

38.1(mm)

Resistance :

10000(ohm)

Product Category :

Wirewound Resistors - Through Hole

Width :

-

Failure Rate :

Not Required

RoHS :

yes

Power Rating :

10W

Temperature Coefficient :

±90(ppm/°C)

Mounting :

CABLE

Flame-Proof Support :

No

Case Style :

Conformal Coated

Length :

38.1 mm
