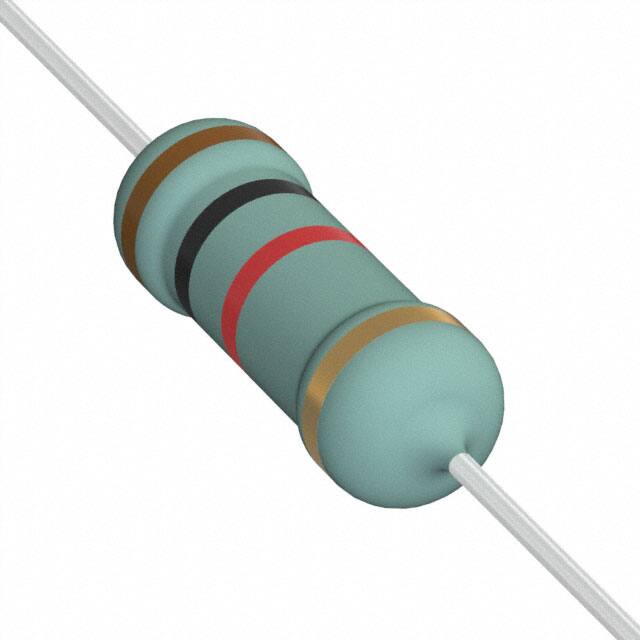

EP1W1K0J

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Supplier Device Package :

-

Product Length (mm) :

12(mm)

Termination Style :

Axial

Operating Temp Range :

-55C to 155C

Tolerance (+ or -) :

5%

Voltage Rating :

500V

Composition :

Wirewound

Product Length :

12mm

Case Style :

Epoxy Resin

Minimum Operating Temperature :

-55°C

Height - Seated (Max) :

--

Operating Temperature :

-55°C ~ 155°C

Qualification :

-

Size / Dimension :

0.197 Dia x 0.472 L (5.00mm x 12.00mm)

Flame-Proof Support :

yes

Resistance :

1000(ohm)

Package / Case :

-

Number of Terminals :

2

Power Rating :

1W

Temperature Range @ Derated Power :

70 to 275

Technology :

Wire Wound

Product Width :

-

Temperature Coefficient :

±300(ppm/°C)

Lead Spacing (nom) :

Not Required(mm)

Power (Watts) :

1W

Features :

Flame Retardant Coating, Pulse Withstanding, Safety

Resistance Tolerance :

± 5%

Mounting Type :

-

Resistor Type :

Anti-Surge

Packaging :

Ammo

Power Rating(s) :

1(W)

Tolerance :

±5%

Product Height (mm) :

Not Required(mm)

Failure Rate :

Not Required

Number of Terminations :

2

Product Diameter (mm) :

5(mm)

Maximum Operating Temperature :

+155°C

Product Depth (mm) :

Not Required(mm)

Base Product Number :

CG8313

Military Standard :

Not Required

Product Status :

Obsolete

Construction :

Cylindrical

Package :

Tape and Reel (TR)

Series :

-

Type :

Wirewound
