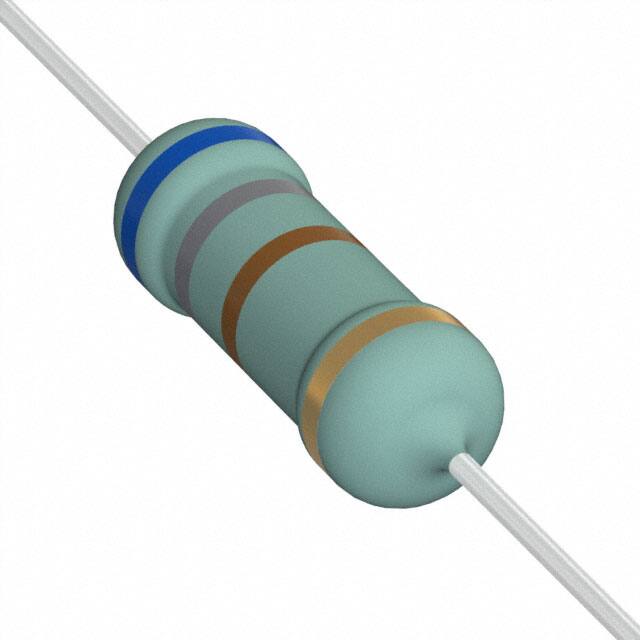

EP1W680RJ

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Subcategory :

Resistors

Package / Case :

Axial

Resistor Type :

Anti-Surge

Type :

Wirewound Anti Surge Resistor

Diameter :

5 mm

Width :

-

Brand :

TE Connectivity / Holsworthy

Base Product Number :

EP1W

Power Rating :

1W

Supplier Device Package :

Axial

Product Type :

Wirewound Resistors

Product Length :

12mm

Lead Diameter :

0.7 mm

Size / Dimension :

0.197 Dia x 0.472 L (5.00mm x 12.00mm)

Resistance Tolerance :

± 5%

Temperature Coefficient :

±300ppm/°C

Packaging :

Tape and Box (TB)

Power (Watts) :

1W

Failure Rate :

--

Series :

*

RoHS :

Details

Mounting Style :

PCB Mount

Features :

Flame Retardant Coating, Pulse Withstanding, Safety

Product :

Power Resistors Wirewound Cement Filled Ceramic

Tolerance :

±5%

Height :

-

Number of Terminations :

2

Length :

12 mm

Product Status :

Active

Minimum Operating Temperature :

-55°C

Product Category :

Wirewound Resistors - Through Hole

Operating Temperature :

-55°C ~ 155°C

Resistance :

680 Ohms

Product Width :

-

Height - Seated (Max) :

--

Voltage Rating :

500V

Technology :

Wire Wound

Manufacturer :

TE Connectivity

Package :

Retail Package

Composition :

Wirewound

Maximum Operating Temperature :

+155°C

Qualification :

-

Termination Style :

Axial
