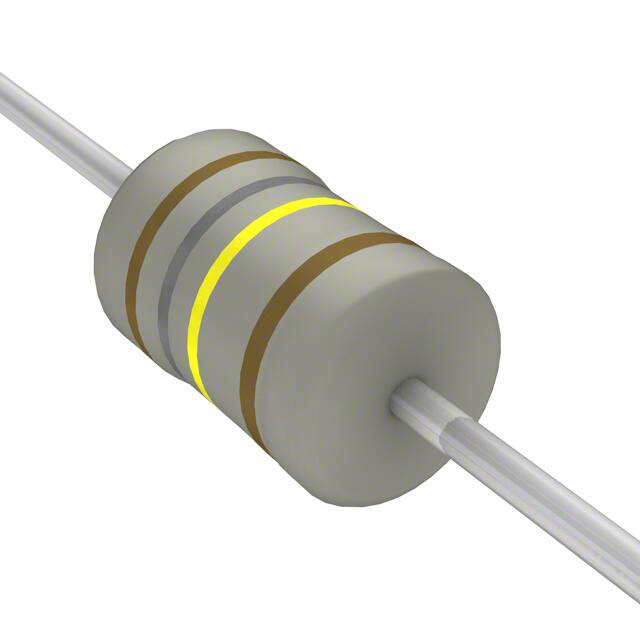

LR2F180K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Number of Resistors :

1

Length :

9.7 mm

Temperature Coefficient :

100 ppm/°C

REACH SVHC :

No SVHC

Lifecycle Status :

Production (Last Updated: 2 weeks ago)

Minimum Operating Temperature :

- 55 C

Resistor Type :

FIXED RESISTOR

Series :

LR, Neohm

Operating Temperature :

-55°C ~ 155°C

Terminal Shape :

Wire

Resistance :

180000 Ω

Reach Compliance Code :

Compliant

Power Rating :

750 mW

Supplier Device Package :

Axial

Additional Feature :

PRECISION

Product Type :

Metal Film Resistors

Working Voltage :

350 V

Product Status :

Active

Base Product Number :

LR2F

Termination :

Axial

Termination Style :

Axial

Qualification :

-

Max Operating Temperature :

155 °C

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Voltage Rating :

350 V

Package Length :

9.7 mm

Resistance Tolerance :

± 1%

Power (Watts) :

0.75W, 3/4W

Rated Power Dissipation (P) :

0.75 W

Mount :

Axial, Through Hole

Product Width :

-

Product Length :

6.25mm

Terminal Finish :

Tin (Sn)

Package :

Tape and Box (TB)

JESD-609 Code :

e3

RoHS :

Compliant

Diameter :

3.5 mm

Brand :

TE Connectivity / Holsworthy

Composition :

Metal Film, Thin Film

Mounting Feature :

THROUGH HOLE MOUNT

Height - Seated (Max) :

--

Radiation Hardening :

No

Factory Lead Time :

15 Weeks, 6 Days

Tolerance :

1%

Features :

--

Maximum Operating Temperature :

+ 155 C

Number of Terminations :

2

Packing Method :

Ammo Pack

Failure Rate :

--

ECCN Code :

EAR99

Package / Case :

Axial

Product Category :

Metal Film Resistors - Through Hole

Construction :

Tubular

Voltage Rating (DC) :

350 V

Min Operating Temperature :

-55 °C

Pbfree Code :

yes

Lead Diameter :

0.55 mm

Packaging :

Tape and Box (TB)

Size / Dimension :

0.138 Dia x 0.382 L (3.50mm x 9.70mm)

Surface Mount :

No

ELV :

Compliant

Number of Terminals :

2

Mounting Style :

PCB Mount

Package Shape :

TUBULAR PACKAGE

Rated Temperature :

70 °C

Max Power Dissipation :

750 mW
