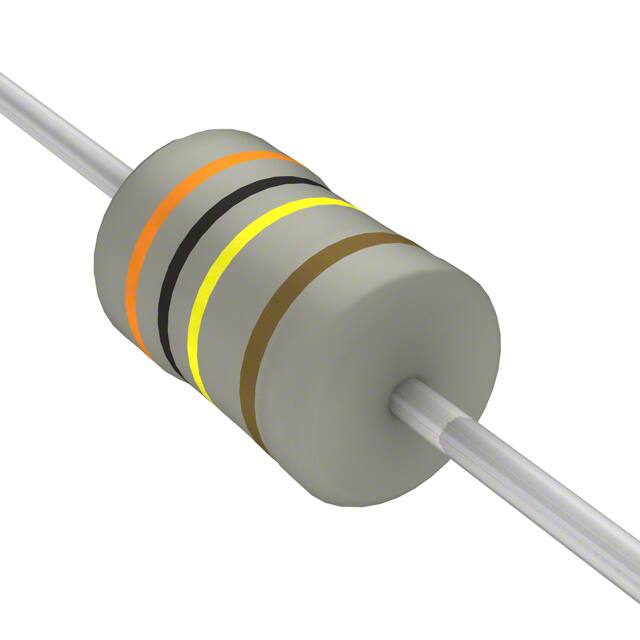

LR2F300K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Resistance :

300000 Ω

Working Voltage :

350 V

Composition :

Metal Film

Additional Feature :

PRECISION

Supplier Device Package :

Axial

Terminal Shape :

Wire

Factory Lead Time :

15 Weeks, 6 Days

Number of Terminations :

2

Maximum Operating Temperature :

+ 155 C

Pbfree Code :

yes

Mounting Style :

PCB Mount

Height - Seated (Max) :

--

Surface Mount :

No

JESD-609 Code :

e3

Operating Temperature :

-55°C ~ 155°C

Number of Terminals :

2

Package Length :

9.7 mm

Packing Method :

Ammo Pack

Power Rating :

750 mW (3/4 W)

Package / Case :

Axial

Package Shape :

TUBULAR PACKAGE

Reach Compliance Code :

Compliant

ECCN Code :

EAR99

Series :

LR, Neohm

Temperature Coefficient :

100 ppm/°C

Failure Rate :

--

Mounting Feature :

THROUGH HOLE MOUNT

Packaging :

Tape and Box (TB)

Product Type :

Metal Film Resistors

Resistor Type :

FIXED RESISTOR

Construction :

Tubular

Diameter :

3.5 mm

Minimum Operating Temperature :

- 55 C

Power (Watts) :

0.75W, 3/4W

Size / Dimension :

0.138 Dia x 0.382 L (3.50mm x 9.70mm)

Terminal Finish :

Tin (Sn)

Length :

9.7 mm

Features :

--

Brand :

TE Connectivity / Holsworthy

Tolerance :

1%

Rated Temperature :

70 °C

Product Category :

Metal Film Resistors - Through Hole

Product Status :

Active

Termination Style :

Axial

Package :

Tape and Box (TB)

Rated Power Dissipation (P) :

0.75 W

Lead Diameter :

0.55 mm
