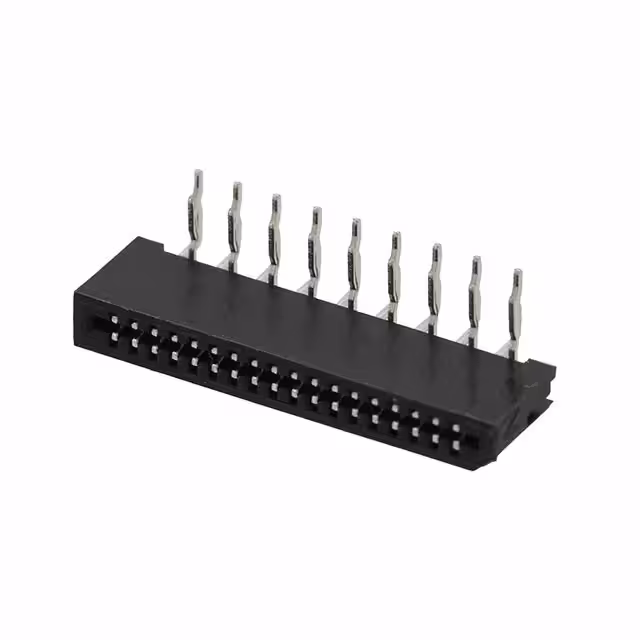

PCB-C-18-SA-20
Or copy the link below:
- Mfr.Part #
- PCB-C-18-SA-20
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- FPC/FFC CONNECTOR, LIF TYPE, 1.0
- Stock
- 569
- In Stock ：
- 569
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Number of Rows :
- 1
- Reliability :
- COMMERCIAL
- Termination Type :
- Solder
- Terminal Pitch :
- 2.0066mm
- Contact Pattern :
- RECTANGULAR
- Mounting Type :
- BOARD
- Insulator Color :
- Black
- Contact Resistance :
- 30mOhm
- Operating Temperature (Min) :
- -40°C
- Total Number of Contacts :
- 18
- Contact Finish - Mating :
- SN ON CU
- Contact Material :
- Phosphor Bronze
- PCB Contact Pattern :
- STAGGERED
- Length - Termination :
- 0.118 inch
- Body Depth :
- 0.296 inch
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Number Of PCB Rows :
- 2
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Style :
- BELLOWED TYPE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insertion Force-Max :
- LIF N
- PCB Contact Row Spacing :
- 2.0066 mm
- Body Breadth :
- 0.102 inch
- Rated Current (Signal) :
- 0.5A
- Mounting Option 1 :
- LOCKING
- Operating Temperature (Max) :
- 85°C
- Connector Type :
- FFC/FPC CONNECTOR
- Body Length or Diameter :
- 0.82 inch
- Mating Contact Pitch :
- 0.039 inch
- Reference Standard :
- UL, CSA
- Factory Lead Time :
- 9 Weeks
- Mounting Style :
- RIGHT ANGLE
- Insulation Resistance :
- 500000000Ohm
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- PCB-C-18-SA-20
BOARD
PCB-C-18-SA-20 Overview
The connector type FFC/FPC CONNECTOR refers to the connector type.The device's mounting type is BOARD.
PCB-C-18-SA-20 Features
PCB-C-18-SA-20 Applications
There are a lot of Adam Tech
PCB-C-18-SA-20 FFC, FPC (Flat Flexible) Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
