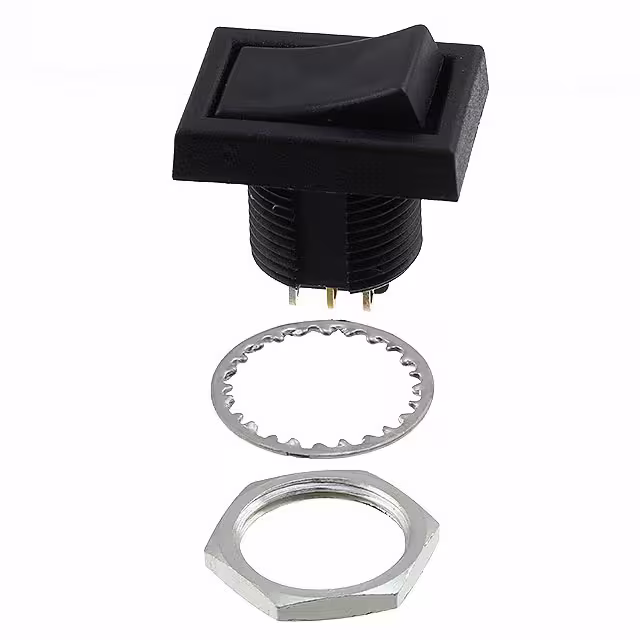

TRD23P10WL
Or copy the link below:
- Mfr.Part #
- TRD23P10WL
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER DPDT 3A 125V
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Mounting Style :
- Panel
- Maximum Operating Temperature :
- + 80 C
- Subcategory :
- Switches
- Operating Temperature Max Deg. C :
- 80C
- Actuator :
- ROCKER
- Base Product Number :
- TRD23
- Manufacturer :
- TE Connectivity
- Package :
- Bulk
- Operating Temp Range :
- -20C to 80C
- Product Length (mm) :
- 19.1(mm)
- Product Depth (mm) :
- 14(mm)
- Product Status :
- Obsolete
- Illumination Type, Color :
- --
- Terminal Type :
- Wire Lug
- Operating Temperature Min Deg. C :
- -20C
- Product Height (mm) :
- 19.63(mm)
- Current Rating :
- 3A (AC)
- Illumination Color :
- -
- Series :
- TRD
- Panel Cutout Dimensions :
- Circular - 11.90mm Dia
- Switch Function :
- On-Off-On
- Ingress Protection :
- --
- Features :
- --
- Switch Configuration :
- ON OFF ON
- Electrical Life :
- 10,000 Cycles
- AC Voltage Rating (Max) :
- 125
- Lamp Type :
- -
- Operating Temperature Range :
- - 20 C to + 80 C
- DC Voltage Rating (Max) :
- 28
- Illumination Type :
- Not Required
- Color - Actuator/Cap :
- Black
- Pole Throw Configuration :
- DPDT
- Actuator Style :
- Curved Rocker
- Actuator Marking :
- No Marking
- Contact Material :
- COPPER ALLOY
- Mechanical Life :
- 50,000 Cycles
- Product :
- Rocker Switches
- RoHS :
- N
- Base/Housing Material :
- Polyamide
- Housing Material :
- N/A/Polyamide
- Circuit :
- DPDT
- Contact Form :
- DPDT
- Actuator Type :
- Concave (Curved)
- Packaging :
- Bulk
- Actuator Material :
- Polyamide
- Product Type :
- Rocker Switches
- Mounting :
- Panel Mount
- Current Rating (Amps) :
- 3A (AC)
- Minimum Operating Temperature :
- - 20 C
- Mounting Type :
- Panel Mount, Threaded Body with Nut
- Operating Temperature :
- -20 to 80 °C
- Voltage Rating - AC :
- 125V
- Current Rating (Max) :
- 3(A)
- Product Category :
- Rocker Switches
- Brand :
- TE Connectivity / Alcoswitch
- Termination Style :
- Solder Lug
- Illumination Voltage (Nominal) :
- --
- Contact Plating :
- Silver
- Datasheets
- TRD23P10WL
