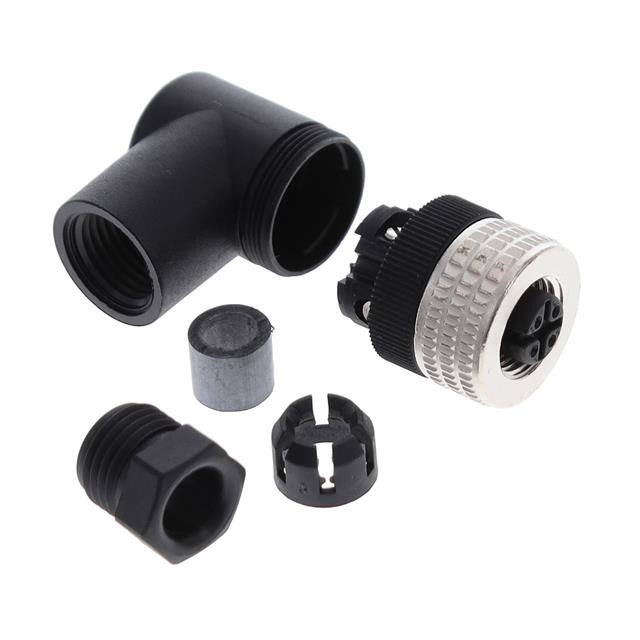

XZCC12FCM40B

Manufacturer :

Schneider Electric

Product Category :

Circular Connector Assemblies

Ambient temperature :

-40 - 85

Fastening Type :

Threaded

Material of contact surface :

Other

Voltage Rating :

150VDC

Contact Plating :

-

Contact Material :

-

Type of electric connection :

Screw connection

Ingress Protection :

IP67 - Dust Tight, Waterproof

Product Status :

Active

Number of Positions :

4

Connectable conductor cross section multi-wired :

0 - 75

Thread size M :

12

Color :

Black

Locking mechanism :

NONE

Rated current In :

3

Orientation :

Keyed

Connector Type :

Plug, Female Sockets

Connectable conductor cross section fine-strand without cable end sleeve :

0 - 75

Operating Temperature :

-40°C ~ 85°C

Mounting Feature :

-

Current Rating :

3A

Connector :

M12 (4-pin)

Type :

Schneider

Material :

Metal

Connectable conductor cross section fine-strand with cable end sleeve :

0 - 75

Current Rating (Amps) :

3A

With protective conductor :

No

Shell Finish :

-

Material Flammability Rating :

-

Package :

Box

Degree of protection (IP), mounted :

IP67K

Shielding :

Unshielded

Cable Opening :

0.118 ~ 0.236 (3.00mm ~ 6.00mm)

Shell Size, MIL :

-

Shell Size - Insert :

M12-4

Backshell Material, Plating :

-

Series :

-

Content :

1pc(s)

Applications :

-

For Use With :

OsiSense XM

Mounting Type :

Free Hanging (In-Line), Right Angle

Enclosure material :

Plastic

Shell Material :

Plastic

Connectable conductor cross section solid-core :

0 - 75

Insert Material :

-

Product :

Sensor Connectors

Weight :

20g

Termination :

Screw

Material housing :

Plastic

Inflammability class of insulation material according to with UL94 :

Other

Contact Finish - Mating :

-

Features :

-

Contact Finish Thickness - Mating :

-

Primary Material :

Plastic
