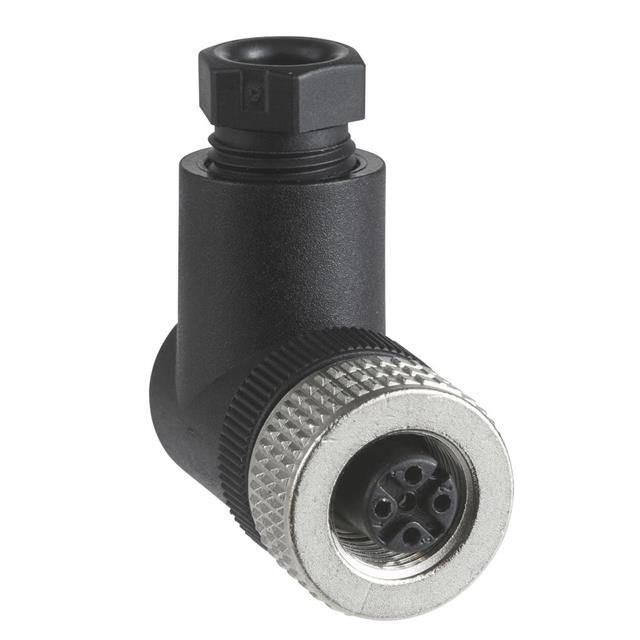

XZCC12FCM50B

Manufacturer :

Schneider Electric

Product Category :

Circular Connector Assemblies

Number of Positions :

5

Primary Material :

Plastic

Material of contact surface :

Other

Degree of protection (IP), mounted :

IP67K

Contact Finish Thickness - Mating :

-

Operating Temperature :

-40°C ~ 85°C

Material housing :

Plastic

Rated current In :

3

Features :

Backshell, Coupling Nut

Mounting Type :

Free Hanging (In-Line), Right Angle

Connector Type :

Plug, Female Sockets

Package :

Box

Thread size M :

18

Material Flammability Rating :

-

Fastening Type :

Threaded

Backshell Material, Plating :

Plastic

Current Rating (Amps) :

3A

Shell Material :

Plastic

Mounting Feature :

-

Connectable conductor cross section multi-wired :

0 - 75

Inflammability class of insulation material according to with UL94 :

Other

Shielding :

Unshielded

Connectable conductor cross section fine-strand with cable end sleeve :

0 - 75

Connectable conductor cross section fine-strand without cable end sleeve :

0 - 75

Shell Size - Insert :

M12-5

Product :

Sensor Connectors

Insert Material :

-

With protective conductor :

No

Contact Material :

-

Ambient temperature :

-40 - 85

Product Status :

Active

Series :

-

Shell Finish :

-

Connectable conductor cross section solid-core :

0 - 75

Type of electric connection :

Screw connection

Locking mechanism :

NONE

Applications :

-

Voltage Rating :

30VAC, 36VDC

Orientation :

Keyed

Ingress Protection :

IP67 - Dust Tight, Waterproof

Cable Opening :

-

Color :

Black

Shell Size, MIL :

-

Contact Finish - Mating :

-

Termination :

Screw
