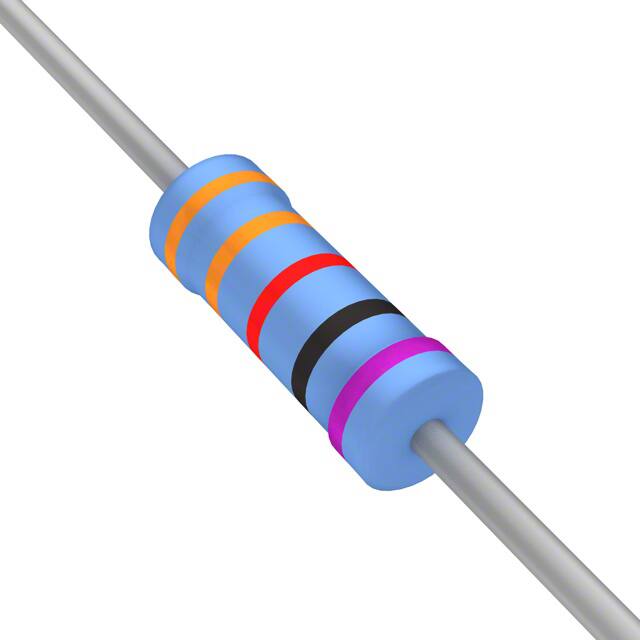

YR1B332RCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Qualification :

-

Packaging :

Tape and Box (TB)

Termination Style :

Axial

Series :

YR, Neohm

Product Status :

Active

Product Width :

-

Package :

Tape and Box (TB)

Rated Power Dissipation (P) :

0.25 W

Lead Length :

25 mm

Resistance Tolerance :

± 0.1%

Package Shape :

TUBULAR PACKAGE

Number of Terminations :

2

Pbfree Code :

yes

Product :

Metal Film Resistors Low Noise

Resistance :

332 Ω

Minimum Operating Temperature :

-65°C

Type :

Precision Metal Film Fixed Resistor

Lead Diameter :

0.6 mm

Height - Seated (Max) :

--

Product Length :

6.3mm

Reach Compliance Code :

Compliant

Construction :

Tubular

Voltage Rating :

500V

Composition :

Metal Film

Power (Watts) :

0.25W, 1/4W

Operating Temperature :

-65°C ~ 155°C

Factory Lead Time :

10 Weeks

Mounting Feature :

THROUGH HOLE MOUNT

Package Length :

6.3 mm

Additional Feature :

PRECISION

Base Product Number :

YR1B

Supplier Device Package :

Axial

Package / Case :

Axial

ECCN Code :

EAR99

Working Voltage :

250 V

Features :

--

Brand :

TE Connectivity / Holsworthy

Product Category :

Metal Film Resistors - Through Hole

Length :

6.3 mm

Temperature Coefficient :

15 ppm/°C

Resistor Type :

FIXED RESISTOR

RoHS :

Details

Failure Rate :

--

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Power Rating :

0.25W

Tolerance :

0.1%

Mounting Style :

PCB Mount

Product Type :

Metal Film Resistors

Terminal Shape :

Wire

Number of Terminals :

2

Diameter :

2.3 mm

Packing Method :

Ammo Pack

Maximum Operating Temperature :

+155°C

Surface Mount :

No
