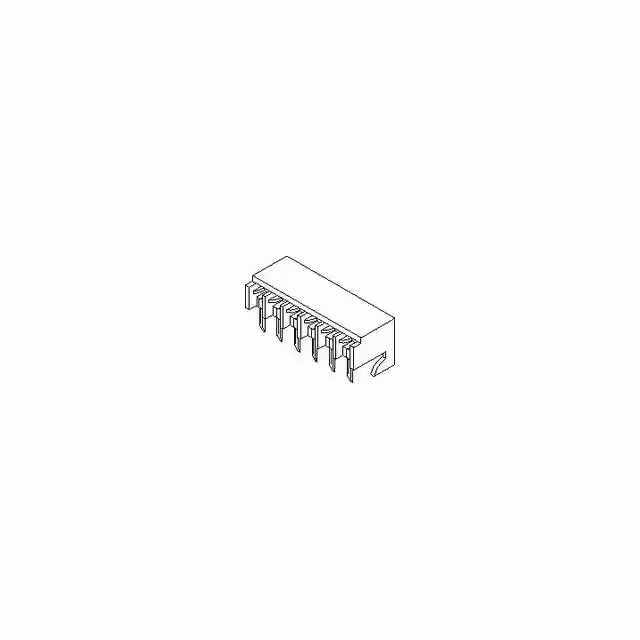

10-10-1021

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Flammability :

94V-2

Mounting Option 1 :

LOCKING

Plating Thickness :

100u inch

Gender :

Receptacle

Glow Wire Compliant :

Non-Compliant

Series :

*

Contact Arrangement :

S0P2

Dielectric Withstanding Voltage :

1000VAC V

Contact Style :

SQ PIN-SKT

UL Flammability Code :

94V-2

Radiation Hardening :

No

JESD-609 Code :

e3

Contact Gender :

FEMALE

Housing Color :

Natural

Contact Finish Termination :

Tin (Sn)

IEC Conformance :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Body Breadth :

0.396 inch

Reach Compliance Code :

Compliant

Max Operating Temperature :

75 °C

Operating Temperature :

0 to 75 °C

Product Status :

Active

Subcategory :

Headers and Edge Type Connectors

Terminal Pitch :

5.08 mm

Body Orientation :

RIGHT ANGLE

Number of Positions :

2

Contact Plating :

Tin

Min Operating Temperature :

0 °C

Filter Feature :

No

Number of Contacts :

2

Total Number of Contacts :

2

Pitch :

5.0800 mm

RoHS :

Compliant

Termination Type :

Solder

Additional Feature :

KK

Insertion Force-Max :

6.672 N

Connector Type :

BOARD CONNECTOR

Manufacturer :

Molex

Mount :

Through Hole

Insulation Resistance :

1000000000 Ω

Insulator Color :

Natural

Mounting :

Through Hole

Number of Circuits :

2

Termination Method :

Solder

Termination :

Solder

Housing Material :

Nylon

DIN Conformance :

No

Current Rating :

7 A

Product Length :

5.08 mm

Voltage Rating :

250 V

Pbfree Code :

yes

Application :

Board-to-Board

Factory Lead Time :

15 Weeks

MIL Conformance :

No

Durability :

25 Cycles

Terminal Length :

0.17 inch

Reliability :

COMMERCIAL

Reference Standard :

UL, CSA

Number of Rows :

1

Mounting Style :

RIGHT ANGLE

Mounting Type :

BOARD

Country of Origin :

In

Base/Housing Material :

Nylon

Contact Resistance :

10 MΩ

Orientation :

RIGHT ANGLE

Contact Material :

Phosphor Bronze

Plating :

Tin

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

PLUG

Body Depth :

0.453 inch

Package :

Tray
