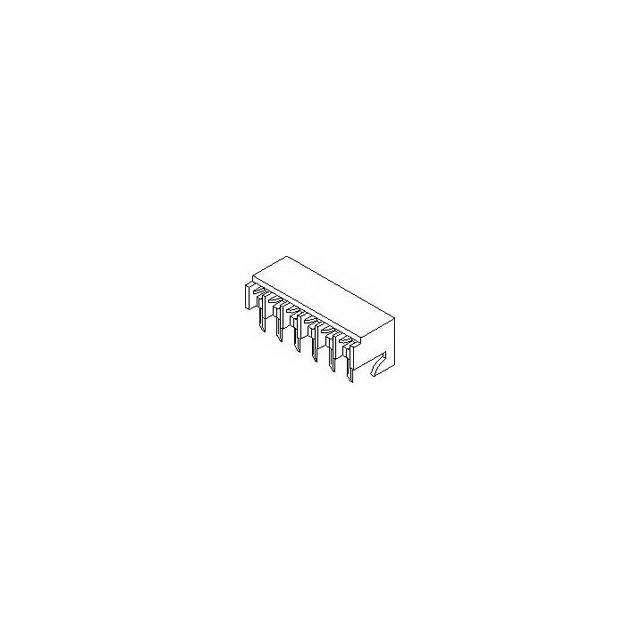

10-10-1081

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Mounting Type :

BOARD

Flammability Rating :

UL 94 V-2

Glow Wire Compliant :

Non-Compliant

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

Insulator Color :

Natural

Series :

*

Durability :

25 Cycles

Number of Positions :

8

Halogen Free :

Low Halogen

Termination Post Length :

4.3 mm

Operating Temperature :

0 to 75 °C

Max Operating Temperature :

75 °C

Number of Rows :

1

Pbfree Code :

yes

Body Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Reference Standard :

UL, CSA

Connector Type :

BOARD CONNECTOR

Body Breadth :

0.396 inch

Termination Type :

Solder

Contact Resistance :

10 MΩ

UL Flammability Code :

94V-2

Voltage Rating :

250 V

Housing Material :

Nylon

Plating Thickness :

100u inch

Product Length :

35.56 mm

Insertion Force-Max :

6.672 N

Body/Shell Style :

PLUG

Dielectric Withstanding Voltage :

1000VAC V

Terminal Pitch :

5.08 mm

Flammability :

94V-2

Number of Circuits :

8

Total Number of Contacts :

8

Insulation Resistance :

1000000000 Ω

Contact Gender :

Socket (Female)

RoHS :

Compliant

Application :

Board-to-Board

Radiation Hardening :

No

Mounting :

Through Hole

Mount :

Through Hole

Country of Origin :

In

Base/Housing Material :

Nylon

Product Type :

Headers and Wire Housings

Manufacturer :

Molex

Reach Compliance Code :

Compliant

Mounting Style :

Through Hole

Housing Color :

Natural

Additional Feature :

KK

Product Status :

Active

Current Rating :

7 A

Plating :

Tin

DIN Conformance :

No

MIL Conformance :

No

JESD-609 Code :

e3

Filter Feature :

No

Termination Style :

Solder Pin

Product :

Headers

Subcategory :

Headers and Wire Housings

IEC Conformance :

No

Min Operating Temperature :

0 °C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

RIGHT ANGLE

Mounting Angle :

RIGHT ANGLE

Termination :

Solder

Pitch :

5.0800 mm

Package :

Tray

Termination Method :

Solder

Body Depth :

0.453 inch

Contact Arrangement :

S0P8

Gender :

Receptacle

Type :

Receptacles

Mounting Option 1 :

LOCKING

Contact Finish Termination :

Tin (Sn)

Reliability :

COMMERCIAL

Contact Style :

SQ PIN-SKT

Terminal Length :

0.17 inch

Contact Plating :

Tin

Factory Lead Time :

16 Weeks

Number of Contacts :

8
