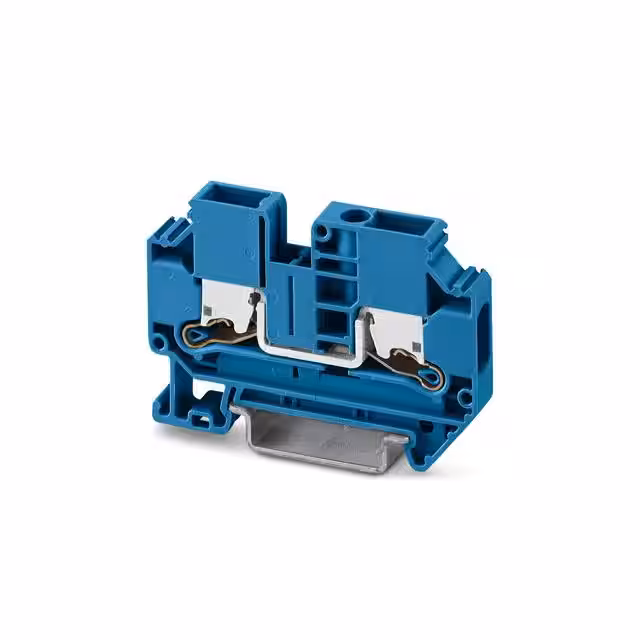

1329494

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Flammability Rating :

UL 94 V-0

Disconnect Type :

-

Package :

Bulk

Material Flammability Rating :

UL94 V-0

Fuse Type :

-

Number of Levels :

1

Mounting Style :

DIN Rail (NS 35/7.5, NS 35/15)

Connection Method :

Push-In

Height :

42.2 mm

Housing Material :

Polyamide (PA)

Series :

XTV

Minimum Operating Temperature :

- 60 C

Length :

62.8 mm

Voltage Rating :

1 kV

Number of Positions :

2 Position

Voltage - IEC :

1000V

Voltage - UL :

-

Product Status :

Active

Color :

Blue

Maximum Operating Temperature :

+ 105 C

Type :

Feed Through Terminal Block

Current Rating :

41 A

Material - Insulation :

Polyamide (PA), Nylon

Stripping Length :

10mm ~ 12mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Features :

Cover

Width :

8.2 mm

Current - IEC :

41 A

Termination Style :

Push In, Spring

Terminal - Width :

8.2mm

Wire Gauge or Range - AWG :

8-16 AWG

Number of Rows :

1 Row
