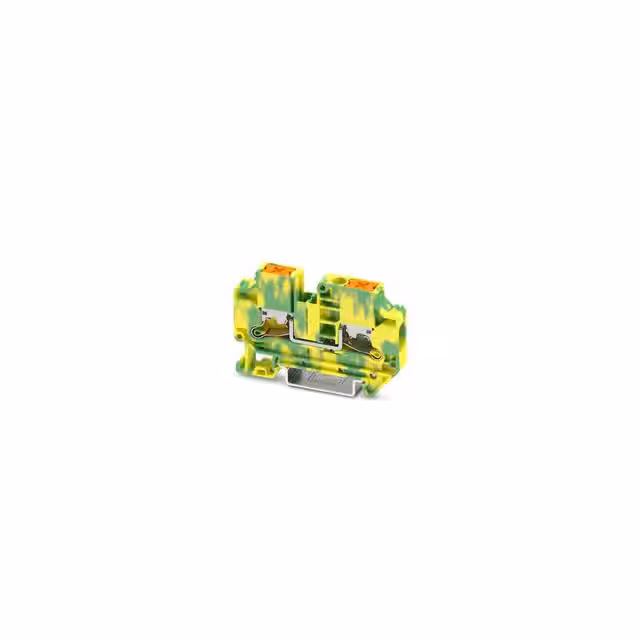

1329495

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Material - Insulation :

Polyamide (PA), Nylon

Flammability Rating :

UL 94 V-0

Height :

42.2 mm

Color :

Gray

Package :

Bulk

Mounting Style :

DIN Rail (NS 35/7.5, NS 35/15)

Wire Gauge or Range - AWG :

8-16 AWG

Connection Method :

Push-In

Voltage - IEC :

-

RoHS :

Details

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Product Status :

Active

Number of Rows :

1 Row

Type :

Ground Terminal Block

Features :

Cover

Voltage - UL :

-

Current Rating :

76 A

Number of Levels :

1

Voltage Rating :

1 kV

Length :

62.8 mm

Termination Style :

Push In, Spring

Housing Material :

Polyamide (PA)

Width :

8.2 mm

Number of Positions :

2 Position

Fuse Type :

-

Disconnect Type :

-

Series :

XTV

Stripping Length :

10mm ~ 12mm

Terminal - Width :

8.2mm

Maximum Operating Temperature :

+ 105 C

Minimum Operating Temperature :

- 60 C
