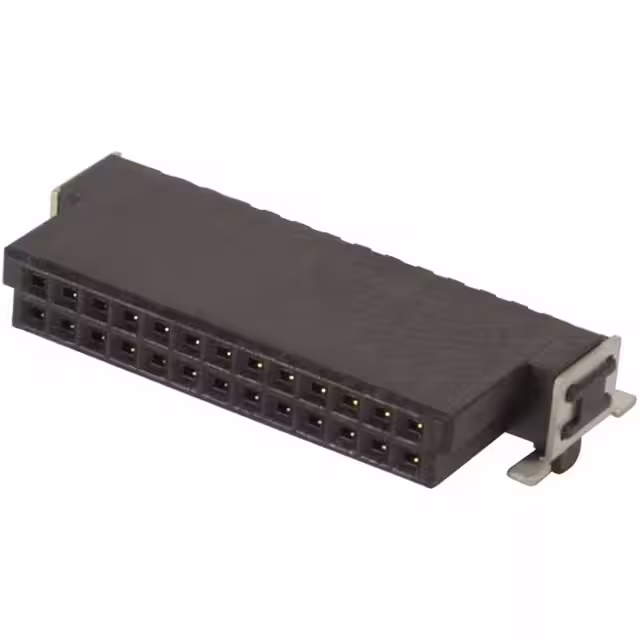

15250082601000

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Contact Gender :

FEMALE

Contact Finish Termination :

Tin (Sn)

Mounting Option 1 :

LOCKING

Contact Material :

COPPER ALLOY

PCB Contact Row Spacing :

1.27 mm

Insulator Color :

Black

Orientation :

Horizontal

Polarization Key :

POLARIZED HOUSING

Mounting Style :

RIGHT ANGLE

Number Of PCB Rows :

2

Contact Pattern :

RECTANGULAR

Operating Temperature (Max) :

125°C

Contact Style :

SQ PIN-SKT

Mounting Type :

BOARD

JESD-609 Code :

e3

Number of Rows :

2

Body Breadth :

0.146 inch

Contact Finish - Mating :

AU ON PD-NI

Packaging :

Tape and Reel (TR)

Connector Type :

BOARD CONNECTOR

Factory Lead Time :

5 Weeks

Number of Pins :

8

Total Number of Contacts :

8

Reference Standard :

UL

Mating Contact Pitch :

0.05 inch

Withdrawl Force-Min :

.5004 N

Board Mounting Option :

PEG

Operating Temperature (Min) :

-55°C

Terminal Pitch :

1.27mm

RoHS Status :

RoHS Compliant

Number of Conductors :

ONE

Durability :

500 Cycles

Insulation Material :

Liquid Crystal Polymer (LCP)

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

10000000000Ohm

Termination Type :

Surface Mount

Contact Resistance :

25mOhm

Insertion Force-Max :

.5004 N

ECCN Code :

EAR99

Mating Contact Row Spacing :

0.05 inch

Reach Compliance Code :

Compliant

Body Length or Diameter :

0.4 inch
