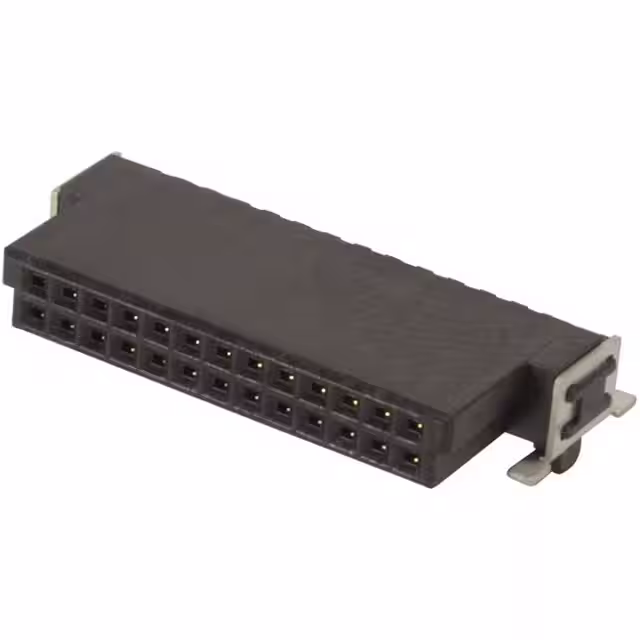

15250102601000

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Mounting Option 1 :

LOCKING

RoHS Status :

RoHS Compliant

Connector Type :

BOARD CONNECTOR

Number of Conductors :

ONE

Contact Style :

SQ PIN-SKT

Withdrawl Force-Min :

.5004 N

Contact Material :

COPPER ALLOY

Factory Lead Time :

9 Weeks

Insertion Force-Max :

.5004 N

Mating Contact Pitch :

0.05 inch

Durability :

500 Cycles

Reach Compliance Code :

Compliant

JESD-609 Code :

e3

Body Length or Diameter :

0.45 inch

Reference Standard :

UL

Number of Pins :

10

Mating Contact Row Spacing :

0.05 inch

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.146 inch

Number of Rows :

2

Contact Finish - Mating :

AU ON PD-NI

Mounting Type :

BOARD

Board Mounting Option :

PEG

Moisture Sensitivity Level (MSL) :

Not Applicable

PCB Contact Pattern :

RECTANGULAR

Contact Finish Termination :

Tin (Sn)

Contact Pattern :

RECTANGULAR

Contact Resistance :

25mOhm

Number Of PCB Rows :

2

PCB Contact Row Spacing :

1.27 mm

Reliability :

COMMERCIAL

Mounting Style :

RIGHT ANGLE

Packaging :

Tape and Reel (TR)

Terminal Pitch :

1.27mm

Insulator Color :

Black

Operating Temperature (Max) :

125°C

Total Number of Contacts :

10

Contact Gender :

FEMALE

Operating Temperature (Min) :

-55°C

Orientation :

Horizontal

Termination Type :

Surface Mount

Insulation Material :

Liquid Crystal Polymer (LCP)
