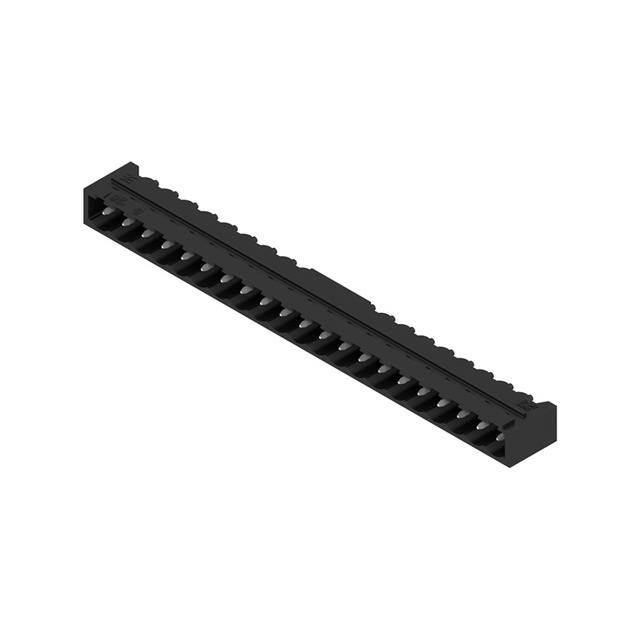

1560210000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Voltage :

300V

Length :

41.6mm

Number of Rows :

1

UL Flammability Code :

94V-0

Current - IEC :

15A

Housing Material :

Polybutylene Terephthalate (PBT)

Series :

Omnimate BL

Current :

10A

Plug Wire Entry :

270°

Number of Contacts :

8

Filter Feature :

No

Wire Strip Length :

7mm

Voltage - IEC :

400V

Pitch :

0.200 5.08mm

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Width :

14.3mm

Mixed Contacts :

No

Mount :

Cable, Free Hanging

Radiation Hardening :

No

Height :

26.9mm

Wire Gauge (Min) :

12 AWG

DIN Conformance :

No

Insulation Height :

1.059 26.90mm

Contact Material :

COPPER ALLOY

Published :

2009

Feature :

Retention Latches (Non-Wire Side)

Termination :

Screw

Mounting Type :

Free Hanging (In-Line)

Lead Free :

Contains Lead

Color :

Black

IEC Conformance :

No

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

Screw Size :

M2.5

Number of Positions :

8

Option :

GENERAL PURPOSE

Wire Gauge (Max) :

26 AWG

Number of Levels :

1

Wire Gauge or Range - AWG :

12-26 AWG

Contact Mating Finish :

Tin

Wire Gauge or Range - mm² :

0.2-2.5mm2

Type :

Plug, Female Sockets

JESD-609 Code :

e3

Operating Temperature :

-50°C~100°C

Packaging :

Bulk
