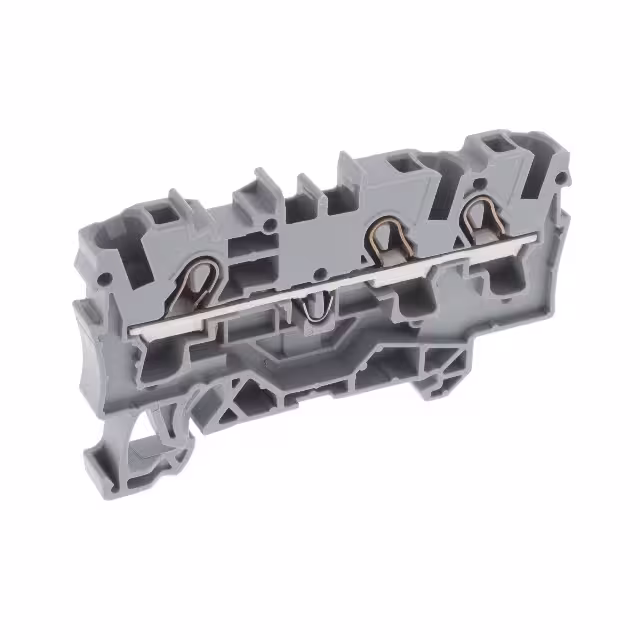

2004-1301

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Operating Voltage (Max) :

800V

Disconnect Type :

-

Configuration :

L

Type :

Standard Block

Housing Color :

Gray

Product Depth (mm) :

6.2(mm)

Rated Current :

32A

Housing Material :

Polyamide 6/6

No. of rows :

1

Number of Levels :

1

Number of Contact Rows :

3

Material Flammability Rating :

-

Cross section (inflexible) (min.) :

0.50mm²

Voltage - IEC :

800V

Nominal current (details) :

32A

Wire Gauge or Range - AWG :

10-14 AWG

Pins per row :

3

Width :

6.20mm

Product Length (mm) :

65.5(mm)

Number of Contacts :

3(POS)

Package :

Bulk

Features :

-

Connection :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Contact Pitch (mm) :

Not Required(mm)

AWG max. :

10

Mounting Type :

DIN Rail

Product Status :

Active

Rated Voltage :

800V

Nominal voltage :

800V

Stripping length (max.) :

13mm

Nominal current - rounded value :

32A

Voltage Rating :

800 V

Min. stripping length :

11mm

RoHS :

yes

Content :

1pc(s)

Base Product Number :

2004-13

Current Rating :

32A

Weight :

0.01

Voltage - UL :

600V

Wire Gauge or Range - mm² :

1.5-6mm²

Termination Style :

Push In, Spring

Fuse Type :

-

Stripping Length :

11mm ~ 13mm

Current - IEC :

41 A

Packaging :

Box

Cross section (flexible) (min.) :

0.50mm²

Color :

Gray

Manufacturer :

Wago

Product Height (mm) :

33(mm)

Cross section (flexible) (max.) :

6mm²

AWG (min.) :

20

Nominal current :

32A

Cross section (inflexible) (max.) :

4mm²

Mounting Style :

T DIN RAIL

Series :

2004

Current Rating (Max) :

41(A)

Terminal - Width :

6.2mm

Manufacturer part # :

2004-1301

Wire Gauge :

10-20(AWG)

Clamp width :

6.20mm

Current - UL :

30 A

Termination Method :

Push In

Number of Positions :

3

Rad Hardened :

No
