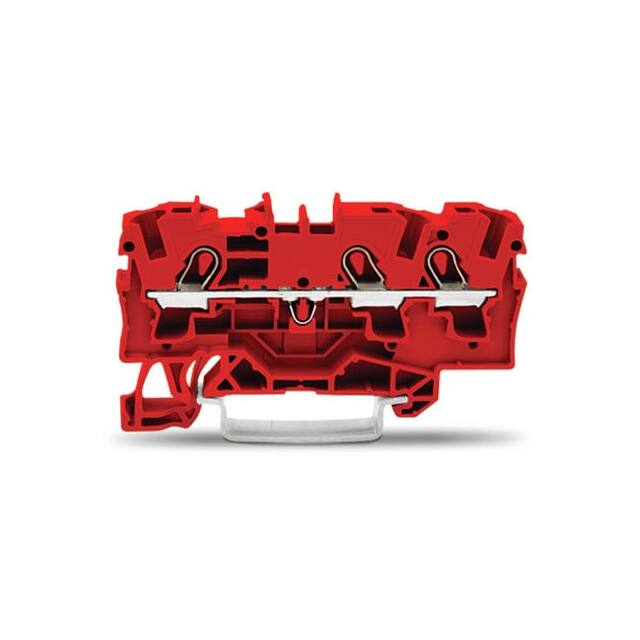

2004-1303

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting :

T DIN RAIL

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Connectable conductor cross section multi-wired :

0.5 - 4

Automotive :

No

PPAP :

No

Maximum Current Rating (A) :

30

Manufacturer :

Wago

EU RoHS :

Compliant

Voltage - UL :

600V

Number of Positions :

3

Material - Insulation :

Polyamide (PA66), Nylon 6/6

ECCN (US) :

EAR99

Number of Contacts :

3

Fuse Type :

-

Tradename :

CAGE CLAMP?

Current - UL :

30 A

Features :

-

Product Status :

Active

Disconnect Type :

-

Number of Levels :

1

Width :

6.2

Package :

Box

Terminal - Width :

6.2mm

Depth :

32.9

Termination Method :

Spring Clamp

Connectable conductor cross section solid-core :

1.6 - 1.6

RoHS :

yes

Series :

TOPJOB®S

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Type :

Terminal Block

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - mm² :

0.5-6mm²

Length :

65.5

Voltage - IEC :

800V

Stripping Length :

11mm ~ 13mm

Rated current In :

32

Color :

Red

HTS :

8536.90.40.00

Current - IEC :

41 A

Wire Gauge or Range - AWG :

10-20 AWG

Termination Style :

Push In, Spring

Mounting Type :

DIN Rail

Height :

65.5

Material Flammability Rating :

UL94 V-0
