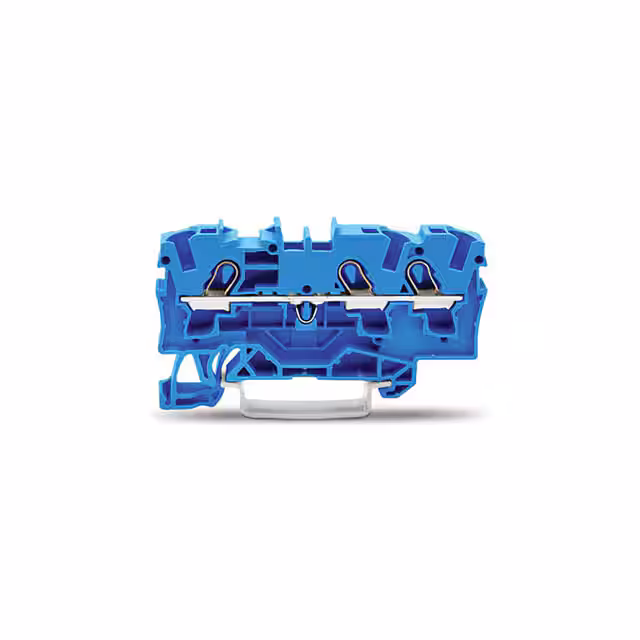

2004-1304

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - UL :

30 A

Current Rating :

32A

Number of Contacts :

3(POS)

RoHS :

yes

AWG max. :

10

Wire Gauge :

10-20(AWG)

Nominal current :

32A

Series :

2004

Content :

1pc(s)

Termination Style :

Push In, Spring

AWG (min.) :

20

Housing Material :

Polyamide 6/6

Width :

6.20mm

Features :

-

Pins per row :

3

Stripping Length :

11mm ~ 13mm

Number of Contact Rows :

1

Wire Gauge or Range - mm² :

0.5-6mm²

Mounting Type :

DIN Rail

Min. stripping length :

11mm

Packaging :

Box

Current - IEC :

41 A

Terminal - Width :

6.2mm

Clamp width :

6.20mm

Material Flammability Rating :

UL94 V-0

Voltage Rating :

550 V

Cross section (flexible) (max.) :

6mm²

Cross section (flexible) (min.) :

0.50mm²

Termination Method :

Clamp

No. of rows :

1

Housing Color :

Blue

Number of Positions :

3

Cross section (inflexible) (max.) :

4mm²

Color :

Blue

Nominal current - rounded value :

32A

Current Rating (Max) :

32(A)

Voltage - UL :

600V

Wire Gauge or Range - AWG :

10-20 AWG

Number of Levels :

Single

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Pitch :

6.2mm

Disconnect Type :

-

Cross section (inflexible) (min.) :

0.50mm²

Manufacturer part # :

2004-1304

Stripping length (max.) :

13mm

Connection :

-

Rad Hardened :

No

Weight :

0.01

Rated Current :

32A

Voltage - IEC :

800V

Fuse Type :

-

Type :

Standard Block

Nominal current (details) :

32A

Product Length (mm) :

65.5(mm)

Rated Voltage :

800V

Operating Voltage (Max) :

800V

Mounting Style :

Din-Rail

Manufacturer :

Wago

Product Status :

Active

Configuration :

N

Package :

Box

Nominal voltage :

800V
