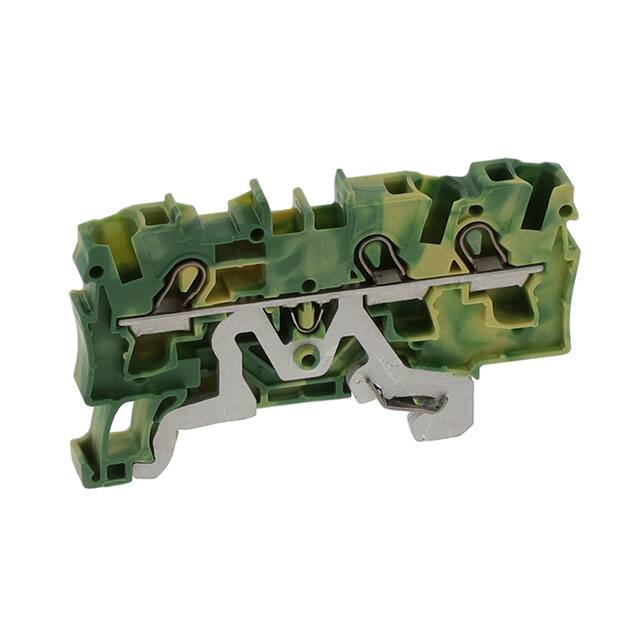

2004-1307

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connection :

-

Terminal - Width :

6.2mm

Width :

6.20mm

Weight :

0.01

AWG max. :

10

Product Status :

Active

Features :

-

Voltage - UL :

-

Color :

Green, Yellow

Content :

1pc(s)

Termination Style :

Push In, Spring

Connectable conductor cross section solid-core :

1 - 6

Cross section (inflexible) (min.) :

0.50mm²

AWG (min.) :

20

RoHS :

yes

Length :

65.5

Connectable conductor cross section multi-wired :

0.5 - 4

Cross section (flexible) (max.) :

6mm²

Min. stripping length :

11mm

Package :

Bulk

Depth :

32.9

Rated Current :

32A

Voltage Rating :

800 V

Configuration :

Terre

Number of Levels :

1

Material Flammability Rating :

-

Disconnect Type :

-

Wire Gauge or Range - AWG :

10-14 AWG

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Cross section (flexible) (min.) :

0.50mm²

Termination Method :

Push In

Number of Positions :

3

Manufacturer :

Wago

Height :

65.5

Type :

Grounding Block

Nominal current (details) :

32A

Pins per row :

3

Series :

2004

Nominal current :

32A

Voltage - IEC :

-

Inflammability class of insulation material according to with UL94 :

V0

Fuse Type :

-

Rated Voltage :

800V

Wire Gauge or Range - mm² :

1.5-6mm²

Manufacturer part # :

2004-1307

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Stripping Length :

11mm ~ 13mm

Wire Size :

20 → 10 AWG

Stripping length (max.) :

13mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Base Product Number :

2004-13

No. of rows :

1

Current Rating :

32A

Nominal current - rounded value :

32A

Mounting Type :

DIN Rail

Clamp width :

6.20mm

Cross section (inflexible) (max.) :

4mm²
