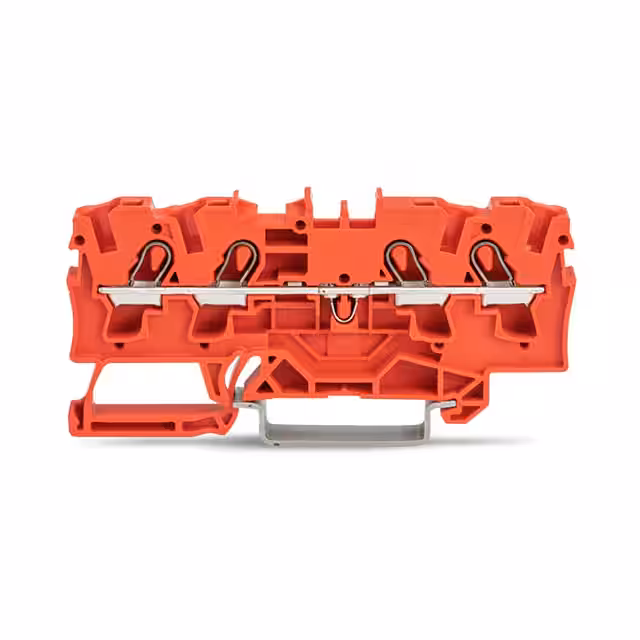

2004-1403

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - UL :

30 A

Terminal - Width :

6.2mm

Mounting Type :

DIN Rail

Width :

6.2

PPAP :

No

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.5-6mm²

Wire Gauge or Range - AWG :

10-20 AWG

Package :

Box

Fuse Type :

-

RoHS :

yes

Current - IEC :

41 A

Series :

TOPJOB®S

Product Status :

Active

EU RoHS :

Compliant

Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Depth :

32.9

Number of Positions :

4

Connectable conductor cross section solid-core :

1.6 - 1.6

Voltage - IEC :

800V

Voltage - UL :

600V

Features :

-

Height :

78.7

Manufacturer :

Wago

Stripping Length :

11mm ~ 13mm

Inflammability class of insulation material according to with UL94 :

V0

Automotive :

No

Type :

Standard Block

Disconnect Type :

-

Rated current In :

32

Length :

79

Termination Style :

Push In, Spring

Color :

Red

HTS :

8536.90.40.00

Connectable conductor cross section multi-wired :

0.5 - 4
