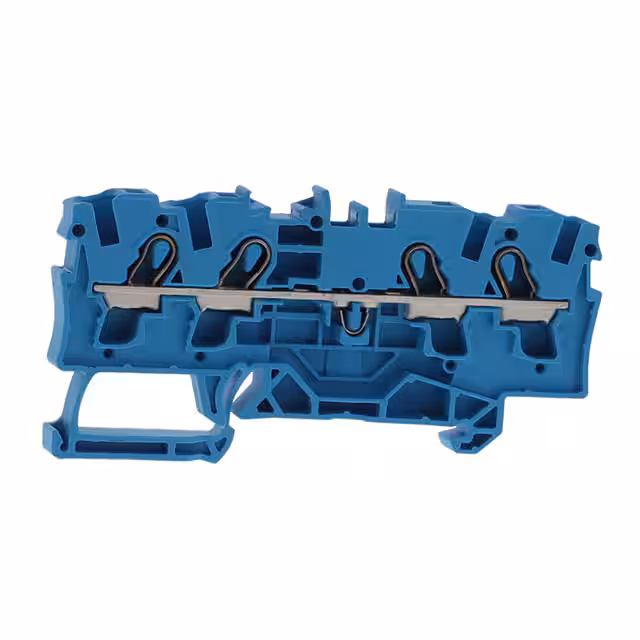

2004-1404

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Voltage - UL :

600V

Width :

6.20mm

AWG max. :

10

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section solid-core :

1.6 - 1.6

Pitch :

6.2mm

Current Rating :

30A

Rad Hardened :

No

Height :

78.7

Pins per row :

4

No. of rows :

1

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Material Flammability Rating :

-

Cross section (inflexible) (min.) :

0.50mm²

Number of Contacts :

4(POS)

Package :

Bulk

Mounting Style :

Din-Rail

Nominal current (details) :

32A

Clamp width :

6.20mm

Wire Gauge :

10-20(AWG)

Number of Levels :

Single

Min. stripping length :

11mm

Manufacturer :

Wago

Connection :

-

Configuration :

N

RoHS :

yes

Wire Gauge or Range - mm² :

1.5-6mm²

Voltage Rating :

550 V

Stripping Length :

11mm ~ 13mm

Number of Contact Rows :

1

Terminal - Width :

6.2mm

Series :

2004

Product Length (mm) :

78.7(mm)

Contact Pitch (mm) :

Not Required(mm)

Nominal current :

32A

Cross section (inflexible) (max.) :

4mm²

Current - UL :

30 A

Disconnect Type :

-

Fuse Type :

-

Manufacturer part # :

2004-1404

Wire Gauge or Range - AWG :

10-14 AWG

Current Rating (Max) :

32(A)

Termination Method :

Clamp

Length :

79

Housing Material :

Polyamide 6/6

Depth :

32.9

Housing Color :

Blue

Base Product Number :

2004-14

Color :

Blue

Packaging :

Box

Termination Style :

Push In, Spring

Cross section (flexible) (max.) :

6mm²

AWG (min.) :

20

Nominal current - rounded value :

32A

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Operating Voltage (Max) :

800V

Stripping length (max.) :

13mm

Current - IEC :

41 A

Voltage - IEC :

800V

Rated Current :

32A

Cross section (flexible) (min.) :

0.50mm²

Number of Positions :

4

Content :

1pc(s)

Features :

-

Rated current In :

32

Type :

Standard Block

Rated Voltage :

800V

Product Status :

Active

Nominal voltage :

800V

Connectable conductor cross section multi-wired :

0.5 - 4
