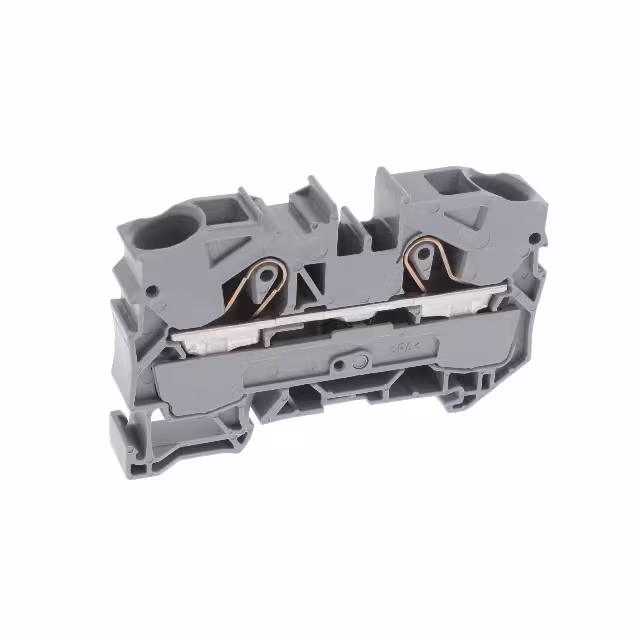

2010-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connection :

-

Operating Voltage (Max) :

800V

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 16

Rad Hardened :

No

Color :

Gray

Cross section (inflexible) (min.) :

0.50mm²

Height :

67.8

Housing Color :

Gray

Voltage - IEC :

800V

Connectable conductor cross section solid-core :

2.5 - 16

AWG (min.) :

20

Nominal current - rounded value :

57A

Width :

10mm

Cross section (inflexible) (max.) :

10mm²

Stripping Length :

17mm ~ 19mm

Clamp width :

10mm

Series :

2010

Wire Gauge or Range - AWG :

6-14 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 10

Connectable conductor cross section multi-wired :

0.5 - 10

Termination Method :

Clamp

Product Height (mm) :

37(mm)

Current - IEC :

76 A

No. of rows :

1

Contact Pitch (mm) :

Not Required(mm)

Cross section (flexible) (max.) :

16mm²

Number of Positions :

2

Number of Contacts :

2(POS)

Voltage - UL :

600V

Gender :

F

Length :

68

Product Length (mm) :

10(mm)

Inflammability class of insulation material according to with UL94 :

V0

Type :

Terminal Block

AWG max. :

6

Current Rating :

51A

Current - UL :

65 A

Manufacturer part # :

2010-1201

Product Status :

Active

Fuse Type :

-

Package :

Bulk

Material Flammability Rating :

-

Configuration :

L

Rated current In :

57

Packaging :

Box

Pitch :

10mm

Nominal voltage :

800V

Pins per row :

2

Wire Gauge :

6-20(AWG)

Features :

-

Min. stripping length :

17mm

Voltage Rating :

550 V

Disconnect Type :

-

Weight :

0.02

Wire Gauge or Range - mm² :

4-16mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current :

57A

Depth :

36.9

Rated Voltage :

800V

Product Depth (mm) :

68(mm)

Terminal - Width :

10.0mm

Rated Current :

57A

Base Product Number :

2010-120

Current Rating (Max) :

76(A)

Nominal current (details) :

57 A (76 A for flexible conductors)

Cross section (flexible) (min.) :

0.50mm²

Content :

1pc(s)

Termination Style :

Push In, Spring

Stripping length (max.) :

19mm

Number of Levels :

Single

Mounting Style :

T DIN RAIL
