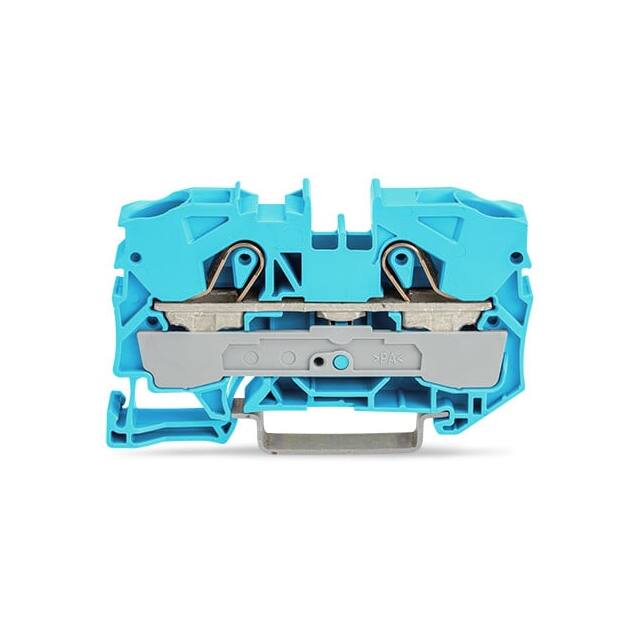

2010-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

ECCN (US) :

EAR99

Mounting Type :

DIN Rail

Number of Positions :

2

Pitch :

10mm

Current Rating :

51A

Voltage Rating :

550 V

Series :

2010

Termination Style :

Push In, Spring

Cross section (inflexible) (min.) :

0.50mm²

Width :

10mm

Min. stripping length :

17mm

Fuse Type :

-

Cross section (flexible) (max.) :

16mm²

Features :

-

Cross section (flexible) (min.) :

0.50mm²

Wire Gauge or Range - AWG :

6-20 AWG

Color :

Blue

Termination Method :

Clamp

Stripping Length :

17mm ~ 19mm

AWG max. :

6

HTS :

8536.90.40.00

Manufacturer part # :

2010-1204

Pins per row :

2

EU RoHS :

Compliant

Cross section (inflexible) (max.) :

10mm²

Number of Levels :

Single

PPAP :

No

Nominal current - rounded value :

57A

Product Status :

Active

Weight :

0.02

Voltage - UL :

600V

Configuration :

N

Voltage - IEC :

800V

Disconnect Type :

-

RoHS :

yes

Nominal voltage :

800V

Terminal - Width :

10.0mm

Automotive :

No

Content :

1pc(s)

AWG (min.) :

20

Nominal current :

57A

Nominal current (details) :

57 A (76 A for flexible conductors)

Wire Gauge or Range - mm² :

0.5-16mm²

Current - IEC :

76 A

No. of rows :

1

Stripping length (max.) :

19mm

Manufacturer :

Wago

Connection :

-

Package :

Box

Material Flammability Rating :

UL94 V-0

Number of Circuits :

1

Current - UL :

65 A

Clamp width :

10mm

Type :

Standard Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6
