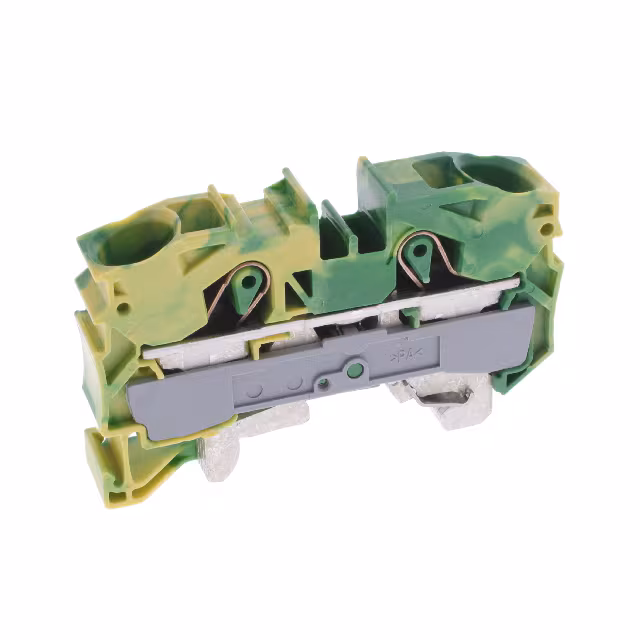

2016-1207

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (flexible) (min.) :

0.50mm²

Nominal current - rounded value :

76A

Stripping Length :

18mm ~ 20mm

Package :

Bulk

Wire Gauge or Range - AWG :

6-14 AWG

Height :

69.8

Nominal current :

76A

Number of Positions :

2

Width :

12mm

Cross section (flexible) (max.) :

24mm²

Length :

70

Cross section (inflexible) (min.) :

0.50mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Color :

Green, Yellow

Rad Hardened :

No

Pins per row :

2

Manufacturer :

Wago

Product Status :

Active

Current Rating :

85A

Number of Levels :

1

Terminal - Width :

12.0mm

Features :

-

Mounting Style :

T DIN RAIL

Base Product Number :

2016-120

Housing Material :

Polyamide 6/6

Fuse Type :

-

Clamp width :

12mm

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 16

Mounting Type :

DIN Rail

Packaging :

Box

Housing Color :

Green/yellow

Voltage Rating :

800 V

Voltage - IEC :

-

No. of rows :

1

Wire Size :

20 → 4 AWG

Disconnect Type :

-

Product Length (mm) :

70(mm)

Type :

Grounding Block

Termination Style :

Push In, Spring

Voltage - UL :

-

Connectable conductor cross section solid-core :

2.5 - 16

Contact Pitch (mm) :

Not Required(mm)

Manufacturer part # :

2016-1207

Number of Circuits :

1

Min. stripping length :

18mm

Rated Current :

76A

Depth :

36.9

Cross section (inflexible) (max.) :

16mm²

Number of Contact Rows :

2

Product Depth (mm) :

12(mm)

Current Rating (Max) :

57(A)

Rated Voltage :

800V

Configuration :

Terre

Wire Gauge or Range - mm² :

6-16mm²

RoHS :

yes

Nominal current (details) :

76A

Material Flammability Rating :

-

Termination Method :

Push In

Inflammability class of insulation material according to with UL94 :

V0

Series :

2016

Stripping length (max.) :

20mm

Connection :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

Wire Gauge :

6-20(AWG)

Content :

1pc(s)

AWG (min.) :

20

Number of Contacts :

2(POS)

Connectable conductor cross section multi-wired :

0.5 - 16

AWG max. :

4

Product Height (mm) :

37(mm)
