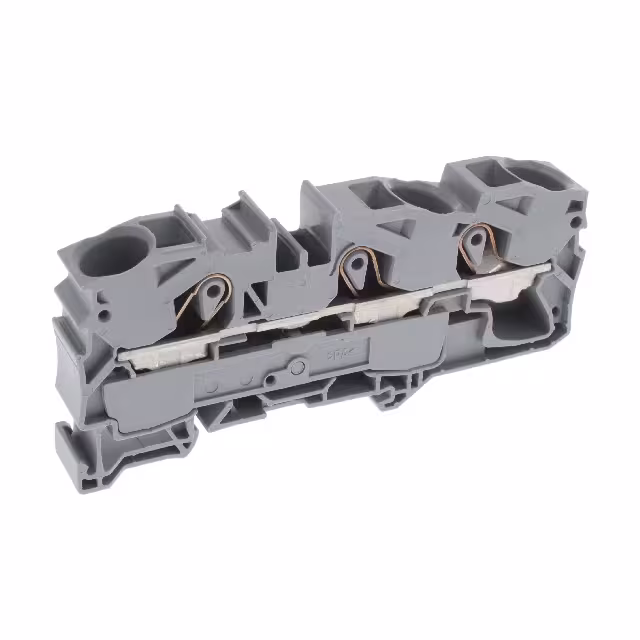

2016-1301

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current Rating :

76A

Nominal current (details) :

76A

Nominal voltage :

800V

Voltage Rating :

800 V

Number of Circuits :

1

Product Status :

Active

Fuse Type :

-

Weight :

0.03

Termination Style :

Push In, Spring

Cross section (flexible) (min.) :

0.50mm²

No. of rows :

1

Material Flammability Rating :

-

Cross section (inflexible) (max.) :

16mm²

Stripping Length :

18mm ~ 20mm

Wire Size :

20 → 6 AWG

Manufacturer part # :

2016-1301

Cross section (inflexible) (min.) :

0.50mm²

Nominal current - rounded value :

76A

Packaging :

Box

Series :

2016

Min. stripping length :

18mm

Number of Levels :

1

Wire Gauge or Range - mm² :

6-16mm²

Color :

Gray

Terminal - Width :

12.0mm

Pins per row :

3

Number of Ways :

3

Disconnect Type :

-

Current Rating (Max) :

90(A)

Number of Positions :

3

Current - UL :

85 A

AWG (min.) :

20

Voltage - UL :

600V

Package :

Bulk

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Manufacturer :

Wago

Clamp width :

12mm

Number of Contacts :

3(POS)

RoHS :

yes

Voltage - IEC :

800V

Configuration :

L

Current - IEC :

90 A

Base Product Number :

2016-130

Mounting Type :

DIN Rail

Cross section (flexible) (max.) :

24mm²

Features :

-

Stripping length (max.) :

20mm

Nominal current :

76A

Type :

Terminal Block

Connection :

-

Rad Hardened :

No

AWG max. :

4

Wire Gauge or Range - AWG :

6-14 AWG

Termination Method :

Push In

Mounting Style :

T DIN RAIL

Content :

1pc(s)

Width :

12mm
