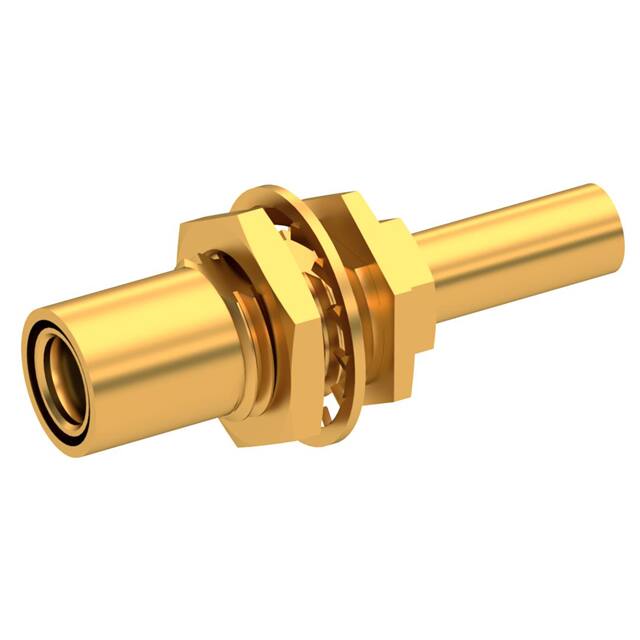

2028-1571-003

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Body/Shell Style :

PLUG

Mounting Feature :

Bulkhead - Front Side Nut

Mounting Style :

Straight

Shield Termination :

Crimp

Number of Ports :

1

Housing Color :

Gold

Product Category :

RF Connectors / Coaxial Connectors

RF Series :

SMB

Voltage Rating :

335 V

Frequency - Max :

4 GHz

Series :

-

Mounting Type :

Panel Mount

VSWR :

1.41

Features :

-

Option :

GENERAL PURPOSE

Coupling Type :

Snap

Panel Mount :

yes

DIN Conformance :

No

Mating Cycles :

500

Filter Feature :

No

Factory Lead Time :

5 Weeks, 5 Days

Manufacturer :

Radiall

Body Finish :

Gold

Reach Compliance Code :

Unknown

Fastening Type :

Snap-On

Characteristic Impedance :

50 Ω

Center Contact Material :

BERYLLIUM COPPER

Packaging :

Bulk

Center Contact Plating :

Gold

Contact Termination :

Crimp

Insertion Loss :

0.30dB

Includes :

-

Product Status :

Active

Brand :

Radiall

Subcategory :

RF Interconnects

Ingress Protection :

-

Connector Style :

SMB

Contact Finish Termination :

Gold

Product Type :

RF Connectors / Coaxial Connectors

Body Material :

Brass

IEC Conformance :

No

Base Product Number :

2028-1571

Operating Frequency-Max :

4 GHz

JESD-609 Code :

e4

Operating Temperature :

-65°C ~ 165°C

Connector Type :

Plug, Female Socket

Termination Type :

Crimp

Contact Gender :

FEMALE

Cable Group :

RG-174, 188, 316

Additional Feature :

STANDARD: MIL-PRF-39012, APPLICABLE CABLES: RG 179; RG 174, INSERTION LOSS MAX AT 1.5GHZ

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Impedance :

50Ohm

MIL Conformance :

yes

Package :

Bulk
