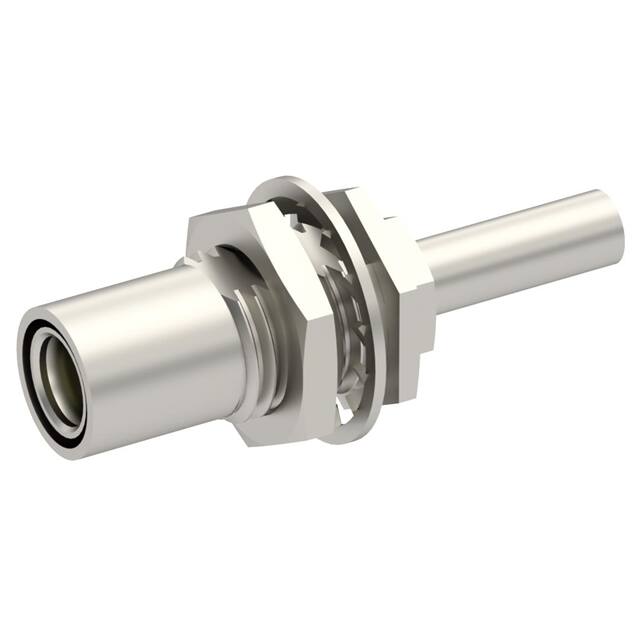

2028-7571-003

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Type :

Panel Mount

VSWR :

1.41

Center Contact Plating :

Gold

Additional Feature :

STANDARD: MIL-PRF-39012, APPLICABLE CABLES: RG 179; RG 174, INSERTION LOSS MAX AT 1.5GHZ

Manufacturer :

Radiall

Base Product Number :

2028-7571

Body/Shell Style :

PLUG

Impedance :

50Ohm

MIL Conformance :

yes

Operating Temperature :

-65°C ~ 165°C

Body Material :

Brass

Product Status :

Active

Contact Finish Termination :

Nickel

RF Series :

SMB

Operating Frequency-Max :

4 GHz

Option :

GENERAL PURPOSE

Center Contact Material :

BERYLLIUM COPPER

Connector Type :

Plug, Female Socket

Housing Color :

Silver

Mating Cycles :

500

Body Finish :

Nickel

Contact Gender :

FEMALE

Ingress Protection :

-

Features :

-

Fastening Type :

Snap-On

Insertion Loss :

0.30dB

Characteristic Impedance :

50 Ω

Panel Mount :

yes

Frequency - Max :

4 GHz

Mounting Feature :

Bulkhead - Front Side Nut

Includes :

-

Termination Type :

Crimp

DIN Conformance :

No

Series :

-

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Cable Group :

RG-174, 188, 316

Product Type :

RF Connectors / Coaxial Connectors

Subcategory :

RF Interconnects

Coupling Type :

Snap

Number of Ports :

1

Factory Lead Time :

6 Weeks, 1 Day

Brand :

Radiall

Package :

Bulk

Product Category :

RF Connectors / Coaxial Connectors

Mounting Style :

Straight

Voltage Rating :

335 V

Packaging :

Bulk

RoHS :

Non-Compliant

Shield Termination :

Crimp

IEC Conformance :

No

Connector Style :

SMB

Contact Termination :

Crimp

Reach Compliance Code :

Unknown

Filter Feature :

No
