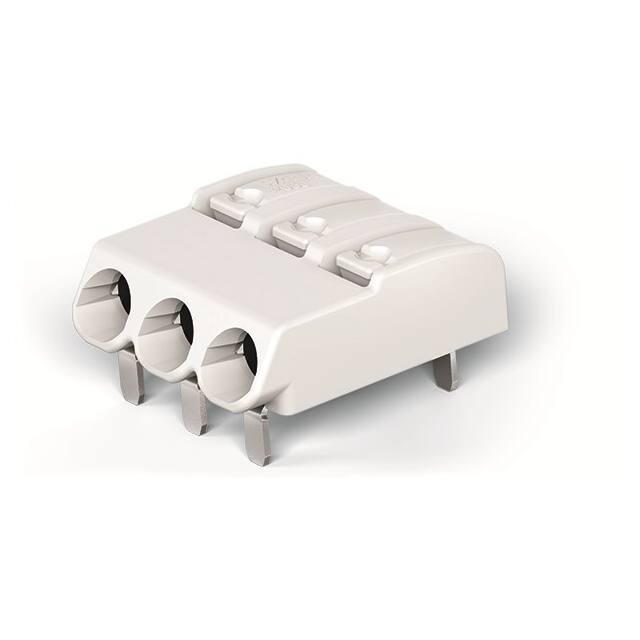

2060-1453/998-404

Manufacturer :

WAGO

Product Category :

Wire to Board

Screw Thread :

-

Housing Material :

Polyphthalamide (PPA), Glass Filled

Color :

OPAQUE WHITE

Pin Length :

2.4 MilliMeters

Series :

-

Rated Current :

9A

Pitch :

0.157 (4.00mm)

Mounting Type :

PCB Mount

Approvals :

cURus

Features :

-

Current :

9 A

EU RoHS :

Compliant

Product Status :

Active

Voltage :

320 V

ECCN (US) :

EAR99

HTS :

8536.90.40.00

Torque - Screw :

-

Clamp Material - Plating :

COPPER ALLOY

Wire Termination :

Screwless - Push Button Clamp

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Wire Gauge :

18-24 AWG

Automotive :

No

Manufacturer :

Wago

Operating Temperature :

-60°C ~ 105°C

RoHS :

yes

Temperature Range :

-76 to 221 Degrees F

Positions Per Level :

3

Connection Type :

Spring Clamp

Screw Material - Plating :

-

Number of Levels :

1

Number of Poles :

3

Composition :

Polyphthalamide

Mating Orientation :

Horizontal with Board

PPAP :

No

Contact Material - Plating :

Copper Alloy - Tin Plated

Rated Voltage :

320V
