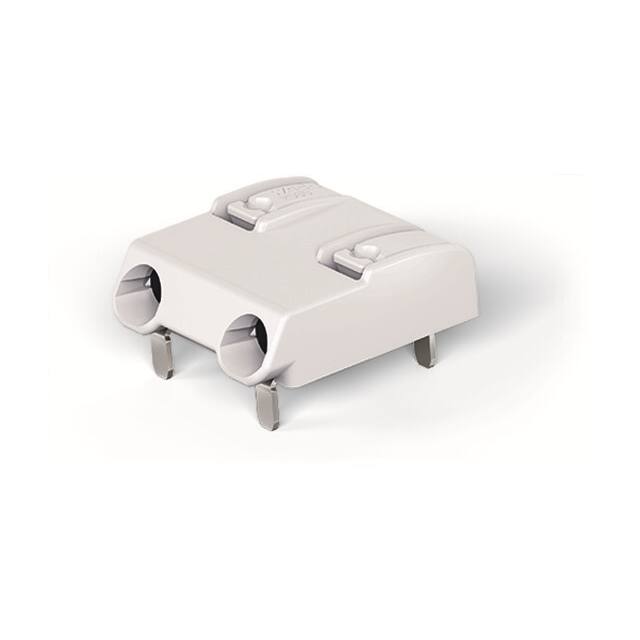

2060-1852/998-404

Manufacturer :

WAGO

Product Category :

Wire to Board

Series :

-

Clamp Material - Plating :

COPPER ALLOY

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 0.75

EU RoHS :

Compliant

PPAP :

No

Wire Gauge :

18-24 AWG

Contact Material - Plating :

Copper Alloy - Tin Plated

Screw Thread :

-

Torque - Screw :

-

HTS :

8536.90.40.00

Features :

-

Mating Orientation :

Horizontal with Board

Pitch :

0.315 (8.00mm)

Width :

8

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.34

Wire Termination :

Screwless - Push Button Clamp

Connection Type :

Spring Clamp

Rated current In :

9

Automotive :

No

Height :

12.7

Connectable conductor cross section solid-core :

0.2 - 0.75

ECCN (US) :

EAR99

Positions Per Level :

2

Approvals :

cURus

Rated Voltage :

630V

Length :

12.7

Product Status :

Active

Pin Length :

2.4 MilliMeters

Depth :

4.5

Manufacturer :

Wago

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

RoHS :

yes

Color :

OPAQUE WHITE

Transparent :

No

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

1

Connectable conductor cross section multi-wired :

0.2 - 0.75

Rated Current :

9A

Screw Material - Plating :

-

Mounting Type :

PCB Mount

Composition :

Polyphthalamide

Housing Material :

Polyphthalamide (PPA), Glass Filled

Number of Poles :

2

Temperature Range :

-76 to 221 Degrees F

Operating Temperature :

-60°C ~ 105°C
