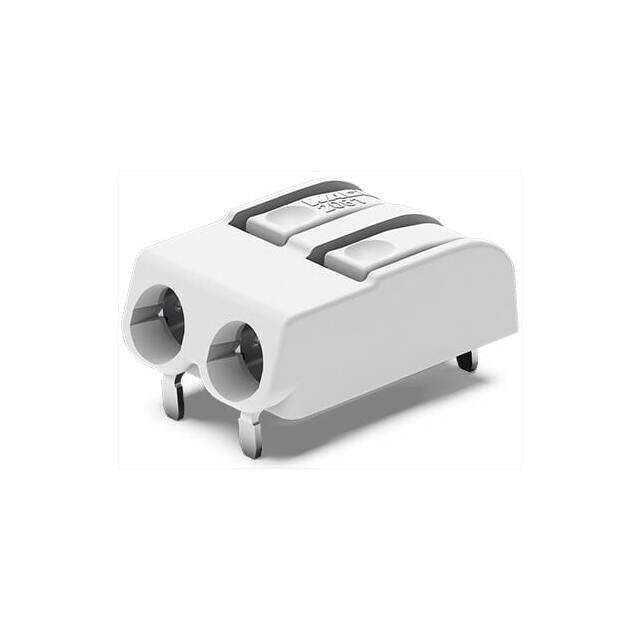

2061-1602/998-404

Manufacturer :

WAGO

Product Category :

Wire to Board

Rated Current :

17.5A

Voltage :

300 V

Mounting Type :

PCB Mount

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 1.5

ECCN (US) :

EAR99

Contact Material - Plating :

Copper Alloy - Tin Plated

Positions Per Level :

2

Current :

10 A

PPAP :

No

Series :

-

Number of Poles :

2

Pin Length :

2.4 MilliMeters

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Wire Termination :

Screwless - Push Button Clamp

EU RoHS :

Compliant

Rated current In :

17.5

Connection Type :

Spring Clamp

Package :

Tape and Reel (TR)

Pitch :

0.236 (6.00mm)

Manufacturer :

Wago

Features :

-

Automotive :

No

Temperature Range :

-76 to 221 Degrees F

Rated Voltage :

320V

Screw Thread :

-

Transparent :

No

Product Status :

Active

Operating Temperature :

-60°C ~ 105°C

HTS :

8536.90.40.00

Depth :

15.2

Color :

OPAQUE WHITE

Mating Orientation :

Horizontal with Board

Wire Gauge :

16-20 AWG

Screw Material - Plating :

-

Number of Levels :

1

Approvals :

cURus

Connectable conductor cross section solid-core :

0.5 - 1.5

Clamp Material - Plating :

Steel - Nickel Plated

Composition :

Polyphthalamide

Torque - Screw :

-

Width :

6

Housing Material :

Polyphthalamide (PPA), Glass Filled

Length :

15.2

Connectable conductor cross section multi-wired :

0.5 - 1.5

Height :

8
