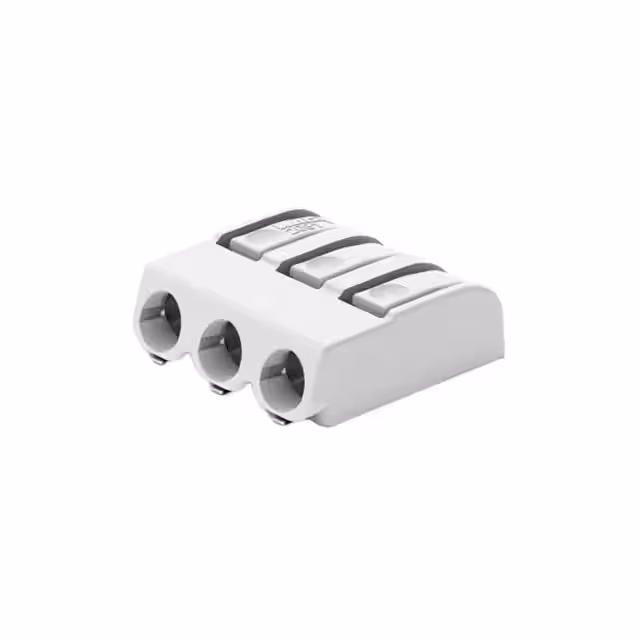

2061-603/998-404

Manufacturer :

WAGO

Product Category :

Wire to Board

Number of Levels :

1

Nominal current :

12A

Stripping length (max.) :

10mm

Contact Material :

COPPER ALLOY

Connection :

Spring-loaded terminal,Print

Contact Pitch (mm) :

6(mm)

Connection Type :

Spring Clamp

Content :

1pc(s)

AWG (min.) :

20

Current Rating :

10 (UL) A, 17.5 (IEC/EN 60664-1) A

Current :

10 A

Gender :

FEMALE

Housing Color :

White

Number of Poles :

3

Length :

5.60mm

Wire Termination :

Screwless - Push Button Clamp

Height :

15.80mm

Number of Ways :

3

Rated Voltage :

320V

Wire protection :

yes

CS :

6mm

Rated Current :

17.5A

Features :

+ CAGE CLAMP®,+ actuator

Mounting Type :

PCB Mount

Pins per row :

3

Color :

OPAQUE WHITE

Wire Size :

20 → 16 AWG

Manufacturer part # :

2061-603/998-404

Operating Voltage (Max) :

320V

Type :

Terminal Block

RoHS :

yes

Product Height (mm) :

5.6(mm)

Screw Material - Plating :

-

Width :

17.70mm

Cross section (flexible) (min.) :

0.50mm²

Rad Hardened :

No

Packaging :

Box

Approvals :

cURus

Operating Temp Range :

-60C to 105C

Temperature Range :

-76 to 221 Degrees F

Wire Gauge :

16-20(AWG)

Product Depth (mm) :

15.8(mm)

Nominal current - rounded value :

12A

Pitch :

0.236 (6.00mm)

Contact Material - Plating :

Copper Alloy - Tin Plated

Cross section (inflexible) (max.) :

1.50mm²

Torque - Screw :

-

Manufacturer :

Wago

Mounting Style :

Surface Mount

Series :

2061

Min. stripping length :

7mm

Composition :

Polyphthalamide

Current Rating (Max) :

17.5(A)

Product Status :

Active

Voltage :

300 V

Number of Contact Rows :

1

Cross section (inflexible) (min.) :

0.50mm²

No. of rows :

1

AWG max. :

16

Voltage Rating :

630 V

Operating Temperature :

-60°C ~ 105°C

Termination Method :

Solder

Screw Thread :

-

Number of Contacts :

3(POS)

Cross section (flexible) (max.) :

1.50mm²

Industrial packaging :

yes

Clamp Material - Plating :

Steel - Nickel Plated

Housing Material :

POLYPHTALAMIDE

Contact Plating :

Tin

Material (details) :

PPA-GF enclosure · Tin-plated copper contacts

Mating Orientation :

Horizontal with Board

Package :

Tape and Reel (TR)

Positions Per Level :

3

Nominal voltage :

320V

Body Orientation :

RIGHT ANGLE
