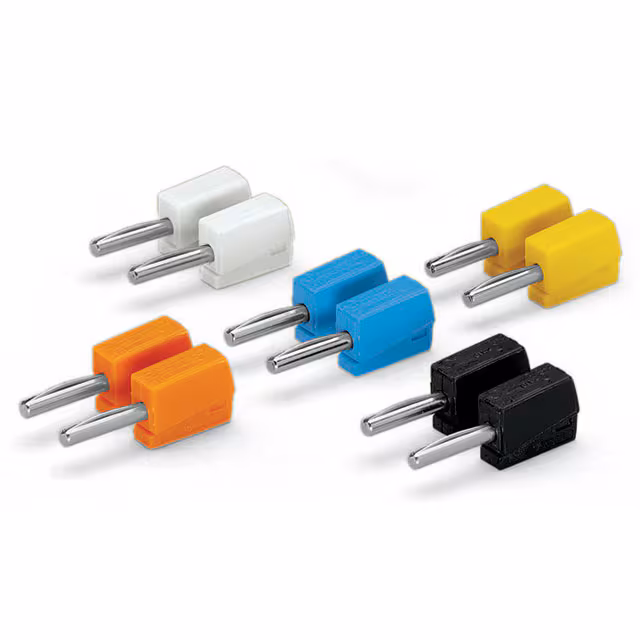

215-111

Manufacturer :

WAGO

Product Category :

Jacks, Plugs

Wire Gauge :

14-28 AWG

Cross section (flexible) (min.) :

0.08mm²

Content :

50pc(s)

Pin Ø :

4mm

Compatible with (details) :

For leads and wires of 0.08 -2.5 mm² cross-section

Connector Type :

PLUG

Packaging :

Box

Body Material :

-

Series :

215

Mounting Type :

Free Hanging (In-Line)

Insulation Material :

PVC

Termination :

-

Connection :

Spring

Current Rating :

20 A

Manufacturer :

Wago

Lead Free :

Contains Lead

Nominal current - rounded value :

20A

Nominal current :

20A

Package :

Box

Nominal current (details) :

20A

Color :

Black, Blue, Orange, White, Yellow

Operating Temperature :

-

Contact Finish :

-

RoHS :

Compliant

Mount :

Straight Pin

Product Status :

Active

Type :

WAGO GmbH and Co. KG

Plug/Mating Plug Diameter :

Standard Banana

Insulation type :

Partially insulated

Cross section (flexible) (max.) :

2.5mm²

Manufacturer part # :

215-111

Features :

-

Contact Material :

Brass

Gender :

Male

Insulation :

Non-Mating End Insulated
