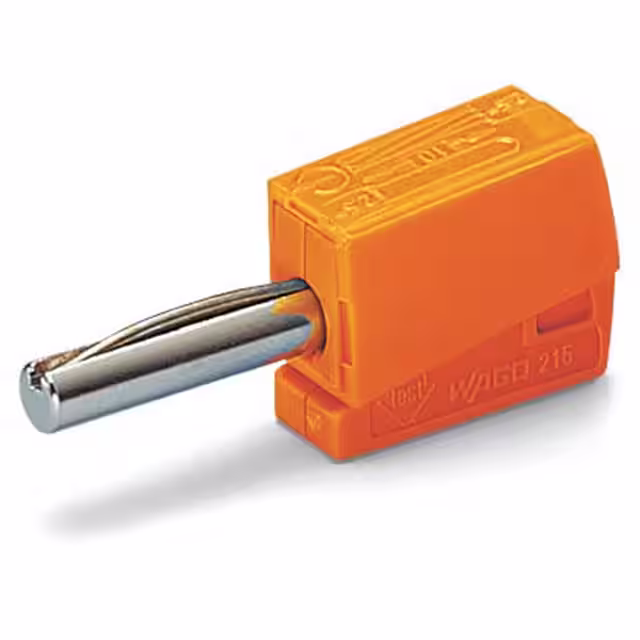

215-211

Manufacturer :

WAGO

Product Category :

Jacks, Plugs

Product Length (mm) :

8(mm)

Operating Temperature :

-

Number of Contacts :

1(POS)

Color :

Orange

Cross section (flexible) (min.) :

0.08mm²

Pin Ø :

4mm

Product Status :

Active

Manufacturer part # :

215-211

Insulation type :

Partially insulated

Manufacturer :

Wago

Housing Color :

Orange

Connection :

Spring

Features :

-

Product Height (mm) :

15(mm)

Type :

Banana Plug

Mounting Type :

Free Hanging (In-Line)

Contact Plating :

-

Nominal current :

20A

Cross section (flexible) (max.) :

2.5mm²

Length :

40mm

Packaging :

Box

Termination Method :

Cage Clamp

Gender :

PL

Content :

1pc(s)

Series :

215

Body Orientation :

Straight

Nominal current (details) :

20A

Package :

Box

Wire Gauge :

14-28 AWG

Insulation :

Non-Mating End Insulated

Plug/Mating Plug Diameter :

Standard Banana

Current Rating :

20A

Product Depth (mm) :

40(mm)

Nominal current - rounded value :

20A

Number of Ports :

1(Port)

Contact Material :

-

Current Rating (Max) :

20(A)

Body Material :

-

Termination :

-

Compatible with (details) :

For leads and wires of 0.08 -2.5 mm² cross-section

Voltage Rating :

42V

Contact Finish :

-
